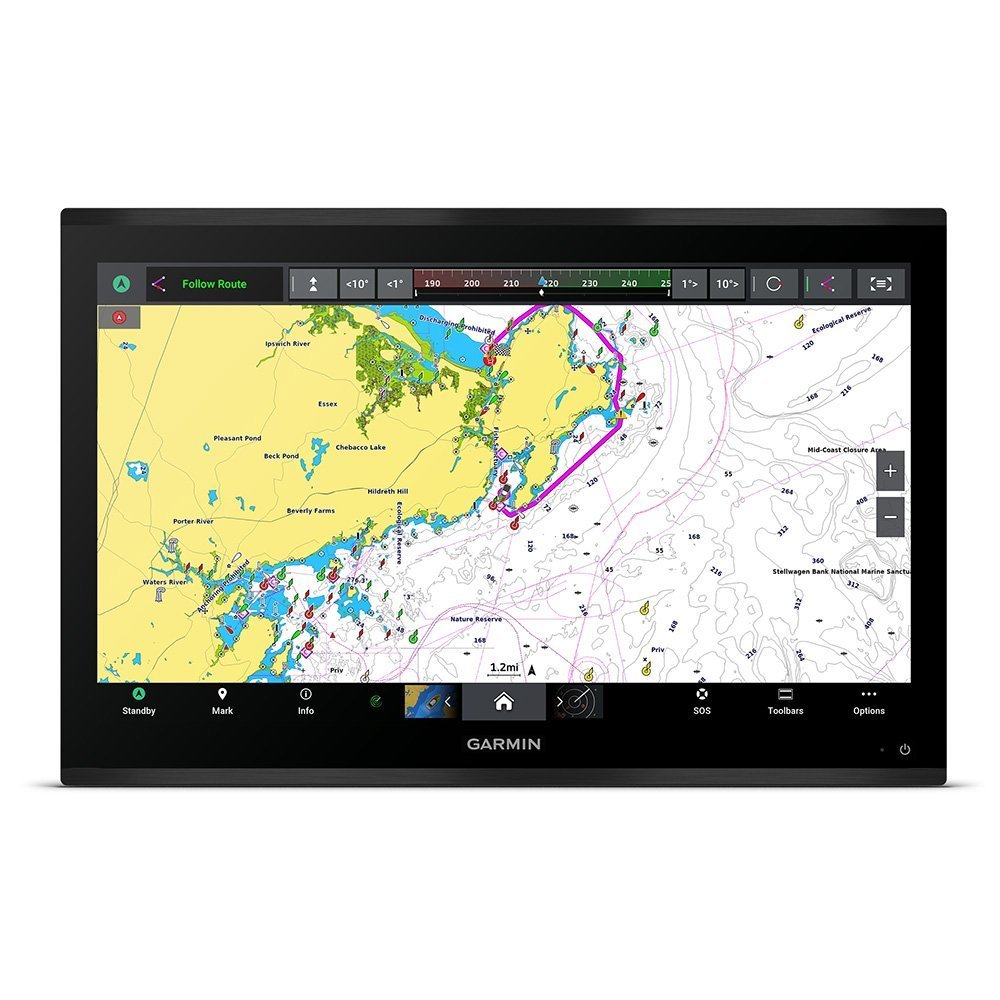

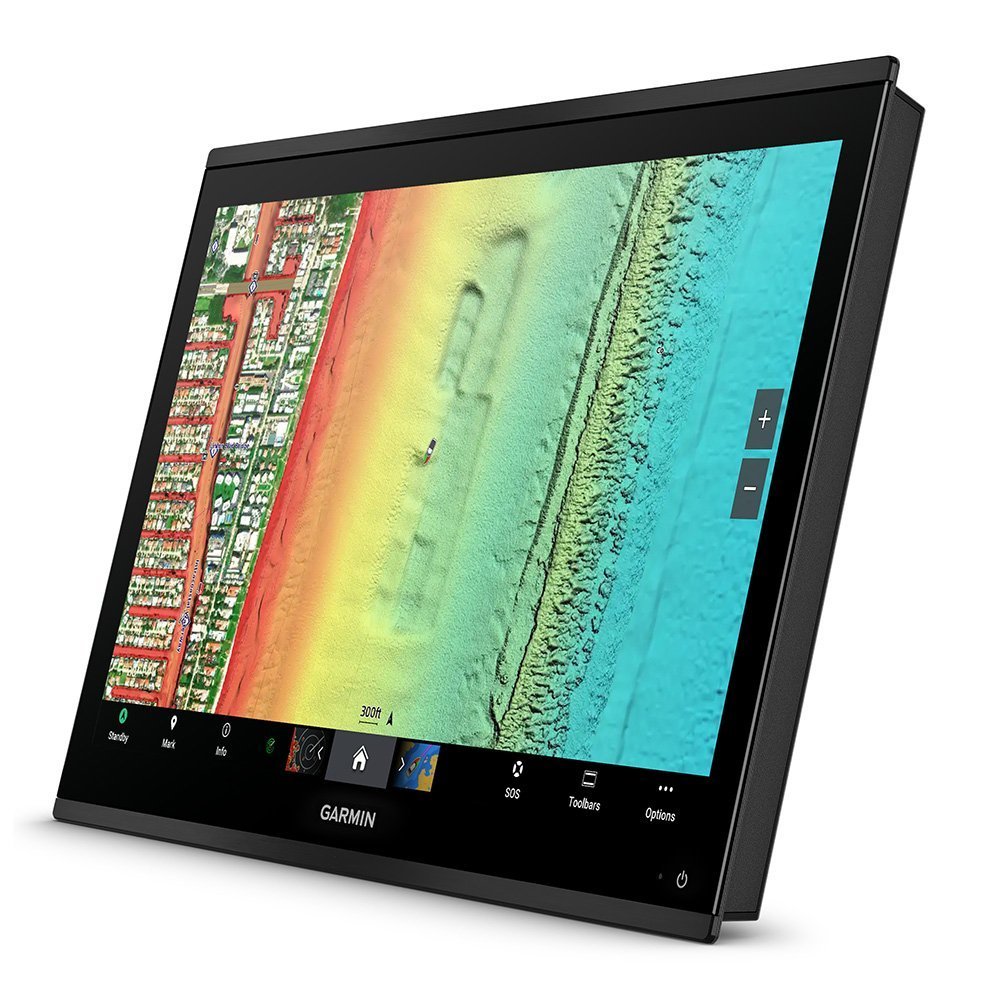

Garmin GPSMAP 9224 24″ Navionics+ Yacht Chartplotter

The Garmin GPSMAP 9224 is a 24-inch 4K yacht chartplotter built for a helm where a normal MFD no longer gives enough space for charts, radar, cameras, and vessel data. Garmin Navionics+ coastal and inland mapping is preloaded, making it ready for supported waters on large luxury yachts, offshore sportfishers, and mega-center consoles.

The 3840 x 2160 IPS touchscreen carries far more chart detail than a Full HD display, which matters when several navigation windows are open at once. Its 10Hz multi-band positioning core supports fast navigation updates, while Garmin BlueNet Gigabit, NMEA 2000, NMEA 0183, J1939, and OneHelm support a large connected vessel system. This is a glass bridge navigation display, not a bundled fishfinder; the supplied information does not identify built-in sonar or a transducer.

Who Is This For?

This 24-inch yacht chartplotter suits 40- to 90-foot luxury yachts, offshore sportfishers, and large center consoles with a dedicated glass bridge. It is not for a small boat, simple retrofit, or buyer expecting bundled sonar hardware.

Warranty & Support

The supplied specifications do not state a warranty term. Confirm current Garmin warranty coverage before purchase.

The GPSMAP 9224 is for a bridge where maximum chart detail and screen space are worth the installation commitment. Compared with Full HD 22- or 24-inch units, the main gain is 4K detail. The trade-off is obvious: it needs a large cutout, a strong network plan, and a vessel substantial enough to use it properly.
