Garmin Reactor 40 Steer-By-Wire Standard Corepack w/GHC 50 Autopilot Instrument

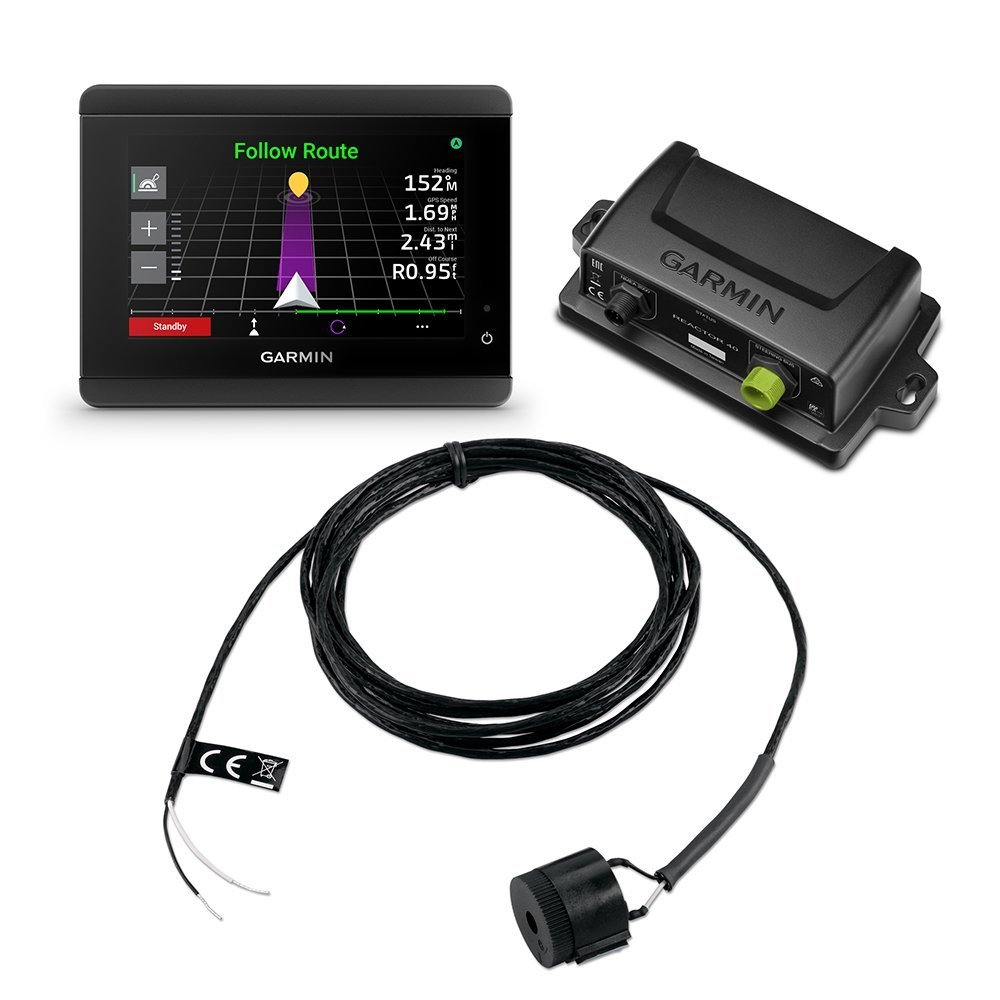

Configure a compatible electronic steer-by-wire system with the Garmin Reactor 40 Steer-By-Wire Standard Corepack with GHC 50. The package includes a Reactor 40 CCU, GHC 50 5-inch touchscreen helm display, steer-by-wire ECU, and connection cables. A 9-axis solid-state AHRS provides the stated autopilot sensor architecture, while NMEA 2000 supports the network connection for compatible steering and Garmin marine systems. [173][176]

Operating voltage ranges from 10V to 30V DC, and the control display can be flush or bracket mounted. The GHC 50 measures 5.5 x 4.1 x 2.0 inches, carries an IPX7 rating, and has a minus 15°C to 55°C operating range. Garmin identifies compatibility with specified SeaStar Optimus, Yanmar Marine ZT370, and ZF 2800 Pod drive systems, so exact steering-system compatibility must be confirmed before purchase. [173][176]

Why Choose the Garmin Reactor 40 Standard Steer-By-Wire Corepack

The Garmin Reactor 40 Standard Steer-By-Wire Corepack combines a 9-axis AHRS, virtual rudder feedback, GHC 50 touchscreen, steer-by-wire ECU, NMEA 2000 connectivity, and 10V to 30V DC operating range. Buyers can compare its SeaStar Optimus, Yanmar ZT370, and ZF 2800 Pod-drive compatibility, display-mounting options, IPX7 rating, and temperature range with other autopilot packages for electronic steering systems. [173][176]

Warranty and Support

Garmin warranty terms vary by product and region, and the supplied specifications do not provide a named warranty period for this corepack. can help you review steer-by-wire compatibility, GHC 50 mounting space, NMEA 2000 requirements, power supply, and the required Garmin and steering-system components before purchase. Review the applicable Garmin warranty coverage and documented package contents before ordering.

Before Ordering the Garmin Reactor 40 Standard Steer-By-Wire Corepack

Confirm that your vessel uses a compatible electronic steer-by-wire system and does not require a hydraulic or mechanical-drive autopilot package. You should verify the exact steering-system model, gateway requirements, NMEA 2000 network capacity, 10V to 30V DC supply, GHC 50 flush or bracket-mount space, ECU location, cable routing, and full installation requirements before purchase.
