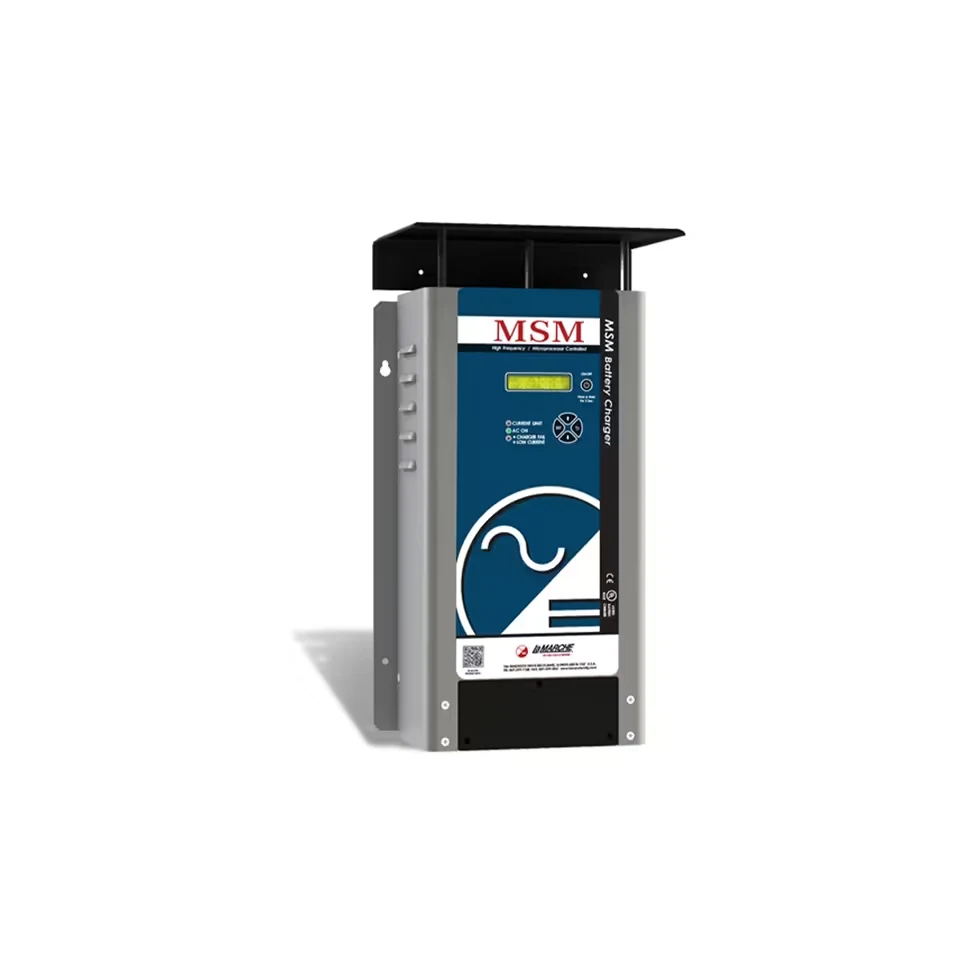

LA MARCHE – MSM Smart High Frequency Switchmode Charger – 24v – 10A
Mounted inside dry generator compartments, the 3.6 kg La Marche MSM 24-10 deep cycle marine charger delivers 10A output to keep 24V starting batteries ready across demanding commercial workboat shifts.
- Single bank charges 24V batteries.
- Auto-sensing input handles 102-264V AC lines.
- Digital LCD interface shows charging stats.
- Internal fuse prevents severe electrical damage.
- Indoor NEMA 1 chassis weighs 3.6 kg.
$452.12
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
Generator-start batteries and small 24V systems can use theLa Marche MSM 24V/10A Smart High Frequency Switchmode Charger, which provides 10 amps through one dedicated 24V output. Its 102V to 264V AC input supports listed lead-acid, AGM, and gel battery types through high-frequency switchmode charging.

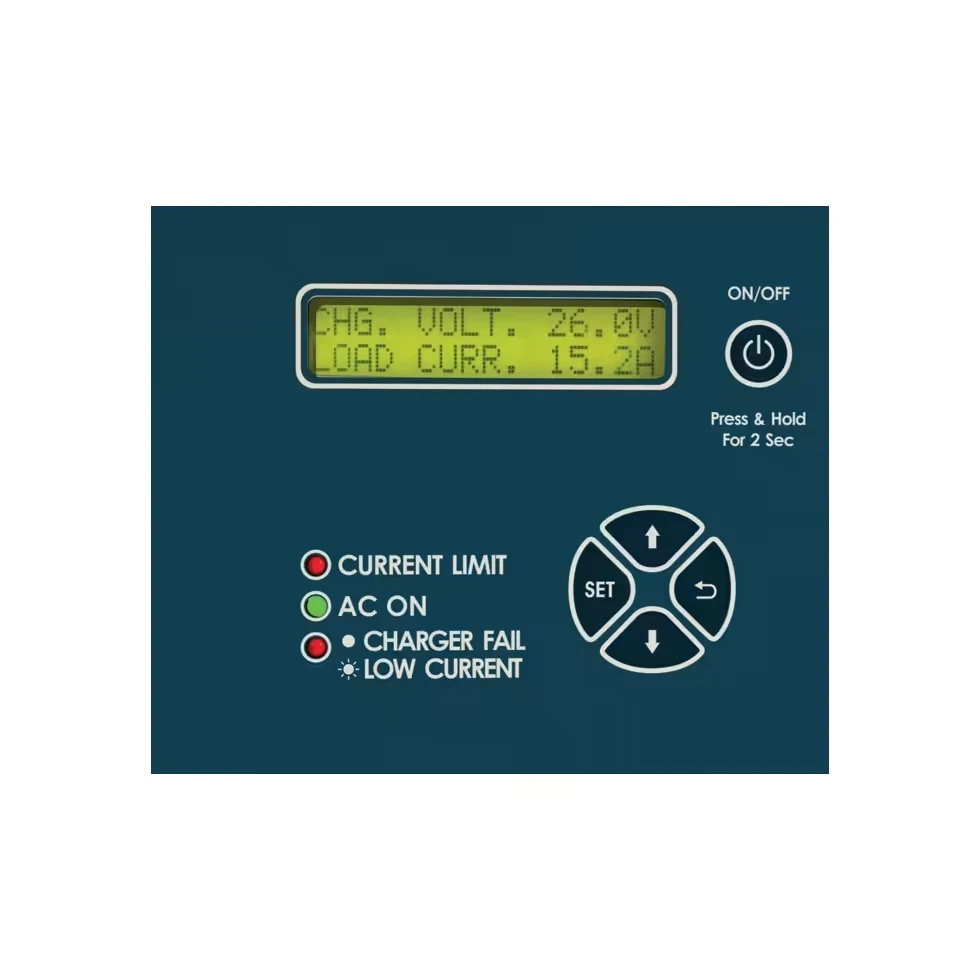

Digital-controlled profiles provide the listed absorption and float configuration, while the LCD status interface offers local charger information. Temperature compensation is supported, and natural convection with fan assistance manages operating heat. NEMA 1 classification, internal fuse and breaker protection, UL listing, and CE marking are documented.
Warranty and Support
Warranty information is not included in the listed product data. Review the manufacturer documentation for product details, setup, and warranty coverage.
Before Ordering the La Marche MSM 24V/10A Smart High Frequency Switchmode Charger
Before ordering, confirm that your system uses one 24V battery bank, accepts 102V to 264V AC input, and uses lead-acid, AGM, or gel batteries. Review the 10-amp output, NEMA 1 classification, non-ignition-protected status, LCD interface, and available installation space. You should confirm compatibility with your battery manufacturer and vessel electrical system before purchase.
Product Specifications
La Marche MSM 24V/10A Charger
| Brand | La Marche |
|---|---|
| SKU | MSM-24-10-24V |
| Output Current | 10 Amps |
| Isolated Banks | 1 Bank |
| DC Voltage | 24V DC |
| Input Voltage | 102-264V AC |
| Battery Types | Lead-Acid, AGM, Gel |
| Algorithm | High Frequency Switchmode |
| Absorption/Float | Digital Controlled Profiles |
| Efficiency | >85% |
| IP Rating | NEMA 1 |
| Ignition Protected | No |
| Communication | LCD Status Interface |
| Temp Compensation | Supported |
| Safety Protections | Internal Fuse / Breaker |
| Cooling | Natural Convection / Fan |
| Dimensions | 250 x 200 x 120 mm (9.8x7.8x4.7") |
| Weight | 3.6 kg (8 lbs) |
| Certifications | UL Listed, CE |
| Application | Generator Start Batteries, Small 24V Systems |
