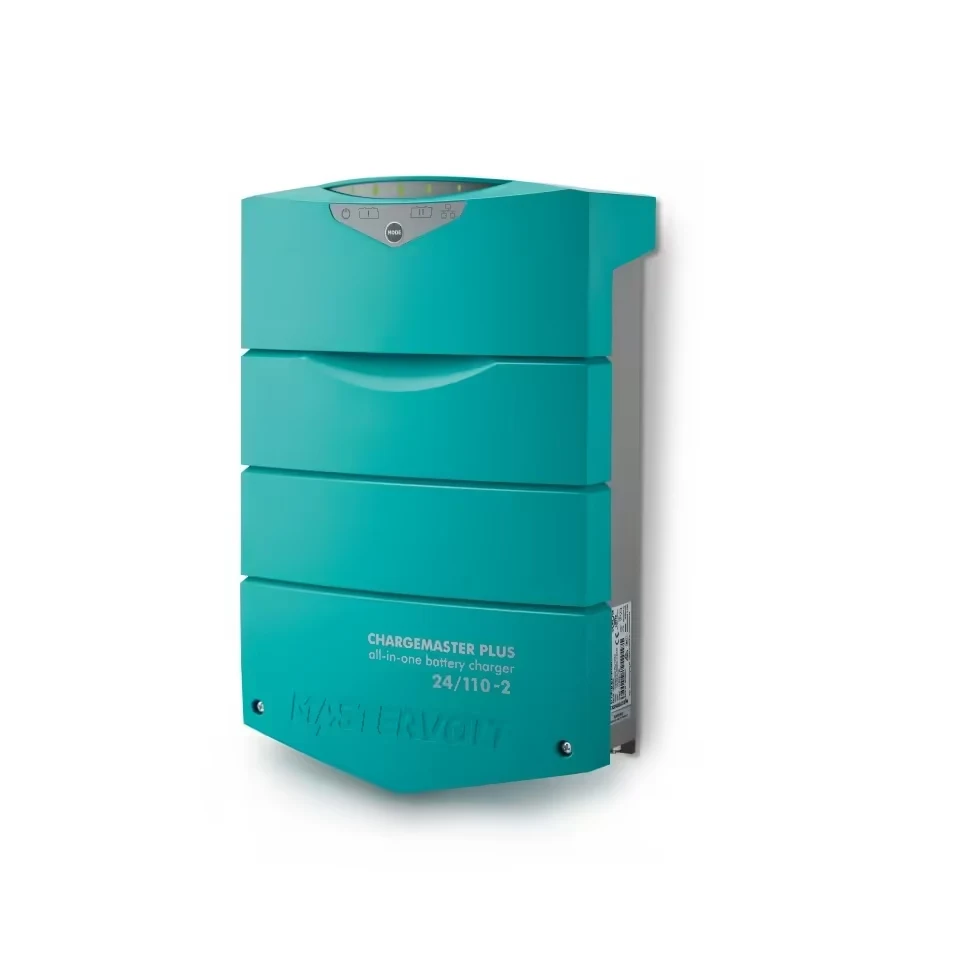

Mastervolt ChargeMaster Plus 24/110-2 – 24V, 110A, 2 Banks CZone Marine Battery Charger – 44321105
Engineered for high-demand superyachts, the 7 kg Mastervolt ChargeMaster Plus 24/110-2 lithium marine battery charger pumps 110A across two isolated banks to replenish 24V LiFePO4 house banks quickly.
- Dual banks share 110A output.
- Ignition protection meets SAE J1171.
- CZone integration streamlines network control.
- Vario-speed fan manages internal heat.
- Robust housing weighs 7 kg.
$1,955.70
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
Delivering 110 amps through two full-output 24V banks, theMastervolt ChargeMaster Plus 24/110-2 Marine Battery Chargeraccepts universal 80V to 275V AC input. It supports listed LiFePO4, AGM, gel, flooded, and NiCad batteries, while its 3-Stage+ algorithm provides customizable 28.5V absorption and 26.5V float values.
MasterBus, CZone, and NMEA 2000 communication are listed for compatible marine-system integration. The included external temperature sensor supports the listed compensation function. The charger lists 92 percent efficiency, IP23 dry-mount classification, SAE J1171 ignition protection, an intelligent variable-speed fan, and a 15.4 lb dry weight.
Warranty and Support
Warranty information is not included in the listed product data. Review the manufacturer documentation for product details, setup, and warranty coverage.
Before Ordering the Mastervolt ChargeMaster Plus 24/110-2 Marine Battery Charger
Before ordering, confirm that your 24V battery system requires up to 110 amps across two full-output banks and accepts 80V to 275V AC input. Review the listed chemistry profiles, communication interfaces, dry-mount classification, installation space, and external sensor. You should confirm compatibility with your battery manufacturer and vessel electrical system before purchase.
Product Specifications
Mastervolt ChargeMaster Plus 24/110-2
| Brand | Mastervolt |
|---|---|
| SKU | 44321105 |
| Output Current | 110 Amps |
| Isolated Banks | 2 Banks (Full Output) |
| DC Voltage | 24V DC |
| Input Voltage | 80-275V AC (Universal) |
| Battery Types | LiFePO4, AGM, Gel, Flooded, NiCad |
| Algorithm | 3-Stage+ (Multi-Chemistry Support) |
| Absorption/Float | 28.5V / 26.5V (Customizable) |
| Efficiency | 92% |
| IP Rating | IP23 (Dry Mount) |
| Ignition Protected | Yes (SAE J1171) |
| Communication | MasterBus, CZone, NMEA 2000 |
| Temp Compensation | External Sensor Included |
| Safety Protections | Short Circuit, Over-Load, Over-Temp, Reverse Polarity |
| Cooling | Vario-Speed Intelligent Fan |
| Dimensions | 384 x 226 x 143 mm (15.1x8.9x5.6") |
| Weight | 7 kg (15.4 lbs) |
| Certifications | CE, ABYC, UL1236, SAE J1171 |
| Application | Superyachts, Large Power Systems, CZone Integrated |
