Victron Energy CCH012060000 Centaur 12/60 Battery Charger 12 Volt 60 Amp
Accepting worldwide 90-265V AC shore power, the 5 kg Victron Centaur 12/60 multi bank marine charger outputs 60A across three isolated outputs to charge 12V lead-acid battery banks on cruising yachts.
- Three isolated outputs deliver 60A.
- Universal input accepts global shore voltages.
- Analog ammeter displays active charge current.
- Forced-air cooling prevents internal component overheating.
- Sturdy chassis weighs exactly 5 kg.
$260.10
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout

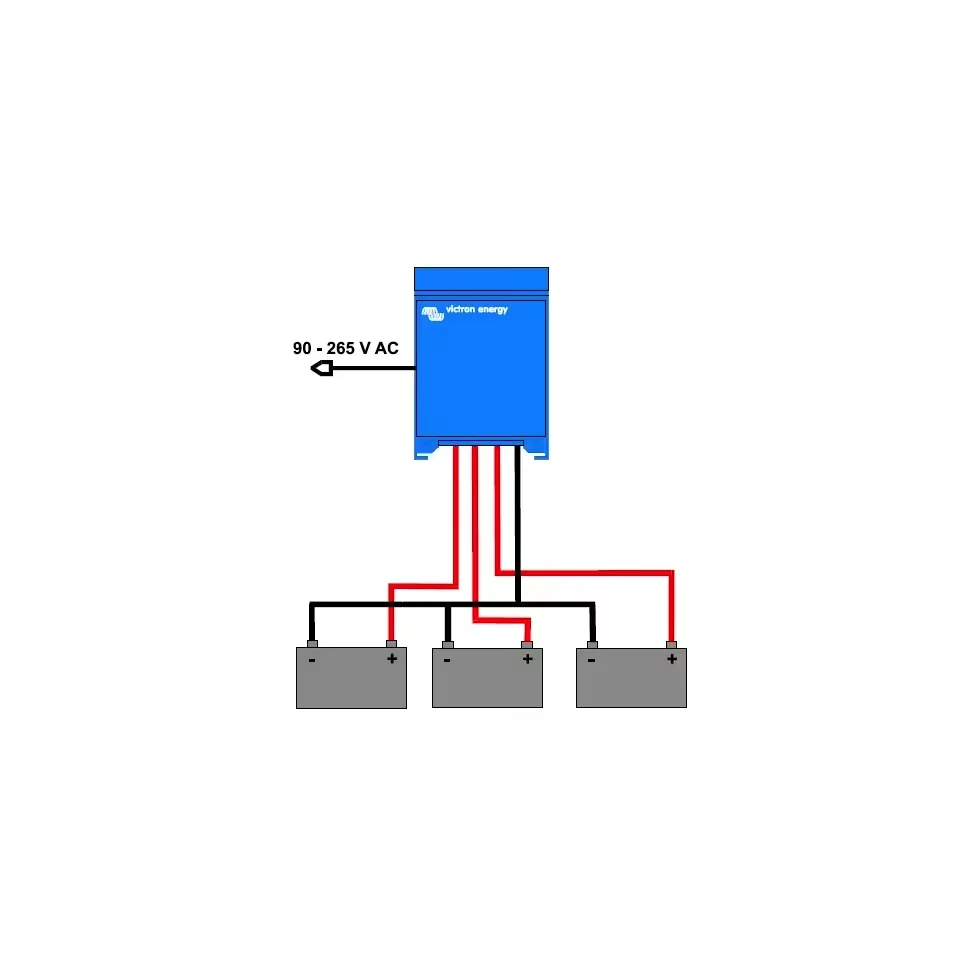

Three isolated 12V banks give theVictron Energy Centaur 12/60 Battery Chargera stated 60-amp output for world cruising and simple multi-bank systems. Its universal 90V to 265V AC input supports listed AGM, gel, and flooded lead-acid batteries through a 3-stage IUoU charging program.
Listed 14.4V absorption and 13.5V float values define the charge profile. An internal sensor supports temperature compensation, while forced-air cooling, an analog ammeter, IP21 protection, and over-temperature and short-circuit protection are documented. The charger is not ignition protected.
Warranty and Support
Warranty information is not included in the listed product data. Review the manufacturer documentation for product details, setup, and warranty coverage.
Before Ordering the Victron Energy Centaur 12/60 Battery Charger
Before ordering, confirm that your system uses up to three 12V lead-acid battery banks, requires up to 60 amps, and accepts 90V to 265V AC input. Review the non-ignition-protected configuration, IP21 protection, installation space, and listed charge voltages. You should confirm compatibility with your battery manufacturer and vessel electrical system before purchase.
Product Specifications
Victron Centaur 12/60 Marine Charger
| Brand | Victron Energy |
|---|---|
| SKU | CCH012060000 |
| Output Current | 60 Amps |
| Isolated Banks | 3 Banks |
| DC Voltage | 12V DC |
| Input Voltage | 90-265V AC (Universal) |
| Battery Types | AGM, Gel, Flooded (Lead-Acid Only) |
| Algorithm | 3-Stage IUoU Charging |
| Absorption/Float | 14.4V / 13.5V |
| Efficiency | >80% |
| IP Rating | IP21 |
| Ignition Protected | No |
| Communication | Analog Ammeter Only |
| Temp Compensation | Internal Sensor |
| Safety Protections | Over-Temp, Short Circuit |
| Cooling | Forced-Air Cooling |
| Dimensions | 426 x 239 x 135 mm (16.8x9.4x5.3") |
| Weight | 5 kg (11 lbs) |
| Certifications | CE, ABYC, UL 1236 |
| Application | World Cruising, Simple Multi-Bank Systems |
