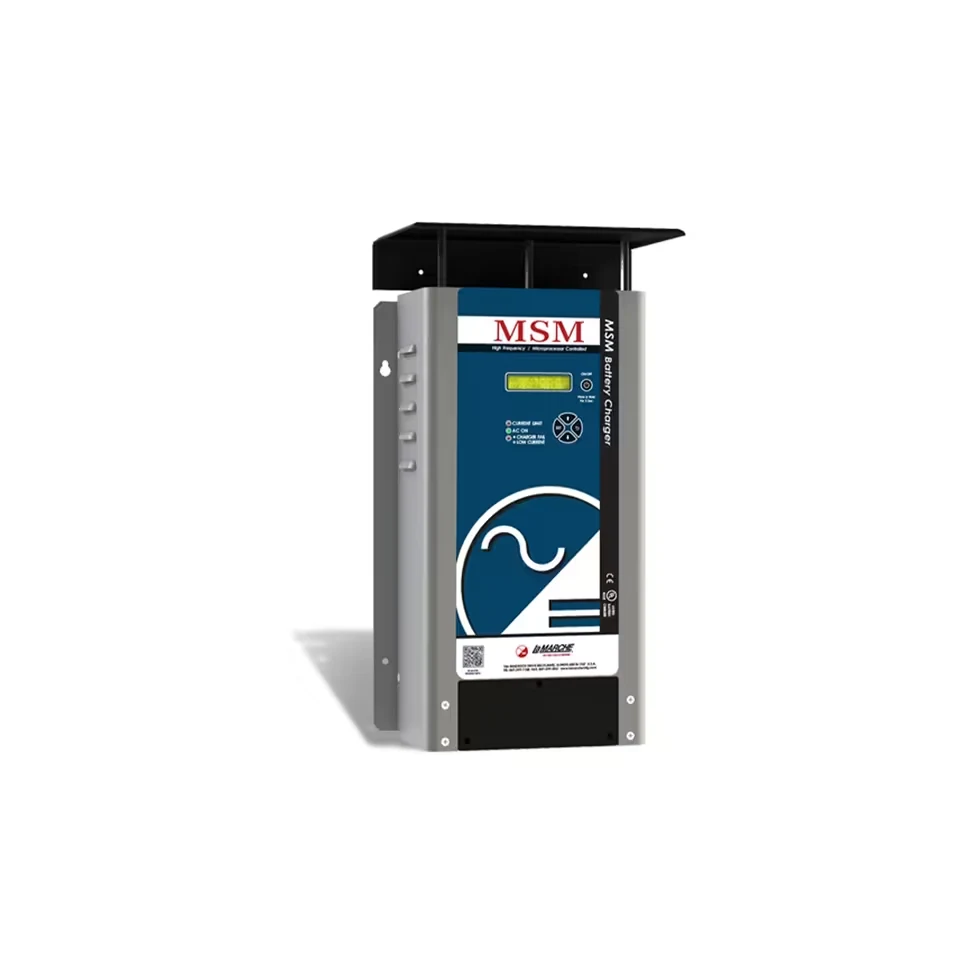

LA MARCHE – MSM Smart High Frequency Switchmode Charger – 24v – 20A
Delivering 20A across 24V battery systems, the 5.4 kg La Marche MSM 24-20 deep cycle marine charger keeps coastal vessel backup banks charged through high-frequency switchmode technology and comprehensive circuit protection.
- Single bank charges 24V systems.
- Digital display monitors charging status continuously.
- Wide input handles 102-264V AC lines.
- Comprehensive protections block reverse polarity risks.
- Rugged chassis weighs exactly 5.4 kg.
$532.44
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
Coastal vessels with a 24V DC backup bank can use theLa Marche MSM 24V/20A Smart High Frequency Switchmode Charger, which provides 20 amps through one output. Its 102V to 264V AC input supports listed lead-acid, AGM, and gel battery types through a high-frequency switchmode charging design.
Digital-controlled profiles provide the listed absorption and float configuration, while the LCD status interface gives local charger information. Temperature compensation is supported, and forced-air cooling manages heat. NEMA 1 classification, full AC and DC protection, and non-ignition-protected status are documented.
Warranty and Support
Warranty information is not included in the listed product data. Review the manufacturer documentation for product details, setup, and warranty coverage.
Before Ordering the La Marche MSM 24V/20A Smart High Frequency Switchmode Charger
Before ordering, verify that your system uses one 24V battery bank, accepts 102V to 264V AC input, and uses lead-acid, AGM, or gel batteries. Review the 20-amp output, NEMA 1 classification, non-ignition-protected status, temperature-compensation support, and available installation space. You should confirm compatibility with your battery manufacturer and vessel electrical system before purchase.
Product Specifications
La Marche MSM 24V/20A Charger
| Brand | La Marche |
|---|---|
| SKU | MSM-24-20-24V |
| Output Current | 20 Amps |
| Isolated Banks | 1 Bank |
| DC Voltage | 24V DC |
| Input Voltage | 102-264V AC |
| Battery Types | Lead-Acid, AGM, Gel |
| Algorithm | High Frequency Switchmode |
| Absorption/Float | Digital Controlled Profiles |
| Efficiency | >85% |
| IP Rating | NEMA 1 |
| Ignition Protected | No |
| Communication | LCD Status Interface |
| Temp Compensation | Supported |
| Safety Protections | Full AC/DC Protection |
| Cooling | Forced Air |
| Dimensions | 310 x 220 x 140 mm (12.2x8.7x5.5") |
| Weight | 5.4 kg (12 lbs) |
| Certifications | UL Listed, Marine Grade |
| Application | Coastal Vessels, 24V DC Back-up |
