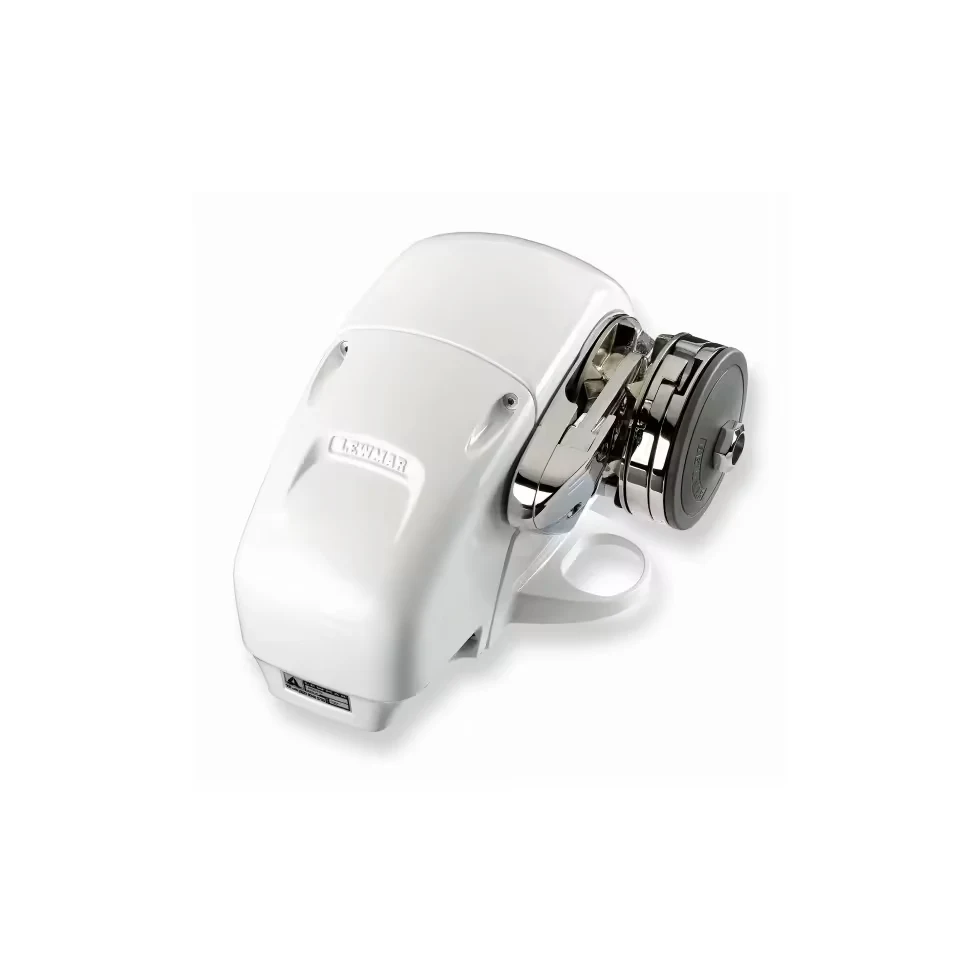

Lewmar H3GD Windlass (Gypsy / Drum) 12v RC8MM – For Boats Up To 48 ft, Max Pull: 1962 lbs

TheLewmar H3GDcombines a 1,000W 12V DC motor with a horizontal gypsy and warping drum configuration. Its stated maximum pull is 1,962 lbs, while the continuous working-load rating is 492 lbs. The precision-cast 316 stainless steel casing and drive shaft form the listed housing and drive assembly for 8 mm DIN 766 or ISO 4565 chain.

The gypsy accepts 14 to 16 mm three-strand rope with the listed 8 mm chain standards. A free-fall friction clutch controls the listed release function, and the emergency manual override provides a separate control option. The provided product data does not confirm an anchor, rode, switch, contactor, or circuit breaker as included.

Which Boats This Windlass Fits

The H3GD gypsy and drum windlass is recommended for cruisers, yachts, and workboats up to 48 ft. Its gypsy requires 8 mm DIN 766 or ISO 4565 chain with 14 to 16 mm three-strand rope. The chain standard and rope diameter must match the confirmed configuration before selecting the anchor rode.

the listed maximum pull reaches 1,962 lbs. The 492 lbs working-load rating identifies the separate continuous hauling load. The continuous figure is the appropriate reference for regular anchor retrieval assessment.

Care and Operating Notes

Rinse the casing, gypsy, warping drum, chain, and rope with fresh water after saltwater exposure. Remove salt, sand, mud, and debris from the rope-to-chain transition and friction-clutch area before operation. Inspect chain links, rope condition, clutch movement, emergency manual override access, visible fasteners, and electrical connections before departure. Follow the manufacturer manual for lubricant selection, service intervals, disassembly, and approved replacement parts.

Warranty and Support

The H3GD carries a 3-year limited manufacturer warranty. The provided warranty term does not define coverage for labor, corrosion, electrical accessories, shipping, or other components. These terms reflect manufacturer-stated coverage, and buyers should verify active warranty policies directly with the seller or manufacturer prior to purchase.

Before Ordering

Confirm that your anchor rode uses 8 mm DIN 766 or ISO 4565 chain with 14 to 16 mm three-strand rope. You should compare your boat with the up-to-48-ft application guide, measure deck thickness against the 1.0 to 2.0 in range, and allow for the 218 mm height, 281 mm base length, and 53 lbs dry weight. Verify that your 12V system supports the listed 110A average draw and required 100A circuit breaker. Confirm controls, circuit-protection hardware, anchor, chain, and rope with the seller because the provided product data does not confirm them as included.
