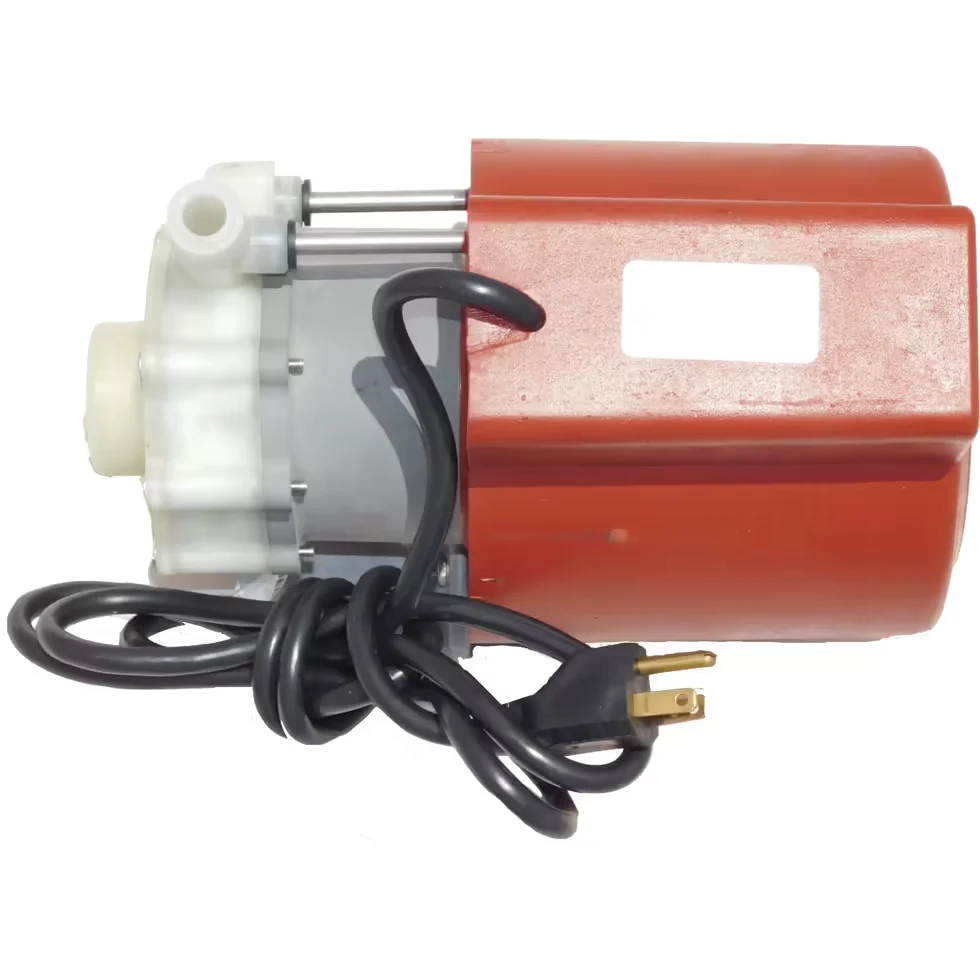

MARCH PUMPS LC-5C-MD / PML1000C (870 GPH) 230V Submersible A/C Pump
Cooling dry-mounted marine air conditioners, the MARCH PUMPS LC-5C-MD 230V circulates 14.5 GPM at 11.7 PSI, pairing an air-cooled continuous-duty motor with a polypropylene wet end to prevent seawater corrosion.
- 14.5 GPM circulation feeds AC chillers.
- Air-cooled motor runs continuous duty cycles.
- Seal-less magnetic design stops shaft leaks.
- Polypropylene casing resists aggressive marine bio-fouling.
- 230V motor draws 1.0A efficiency.
$432.65
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
Circulate water through marine A/C systems and engine-room chilled-water loops with the March Pumps LC-5C-MD PML1000C 230V Air-Cooled Pump. This seal-less magnetic-drive centrifugal pump uses an air-cooled open motor and is designed only for dry-mounted flooded-suction operation. It provides a maximum rated flow of 870 GPH (14.5 GPM / 55.0 LPM), maximum head of 27 ft (8.2 m), and maximum pressure of 11.7 PSI.
March Pumps model LC-5C-MD 0150-0163-0200 has a glass-filled polypropylene housing and ceramic magnet. Its continuous-duty open-drip-proof air-cooled motor operates on 230V AC, 50/60 Hz single-phase power with listed current draw of 1.0A at 230V. The pump uses a 1-inch FPT inlet and 1/2-inch MPT outlet.
Before Ordering
Verify March Pumps model LC-5C-MD 0150-0163-0200 PML1000C, air-cooled non-submersible seal-less magnetic-drive configuration, 230V AC 50/60 Hz single-phase requirement, 1.0A current draw, 870 GPH maximum flow, 27 ft maximum head, 11.7 PSI maximum pressure, glass-filled polypropylene housing, ceramic magnet, ODP air-cooled motor, 1-inch FPT inlet, 1/2-inch MPT outlet, dry-mounted flooded-suction-only requirement, 215 x 140 x 155 mm dimensions, 8.8 lb dry weight, and 1-year limited manufacturer warranty before purchase.
Product Specifications
MARCH PUMPS LC-5C-MD / PML1000C (870 GPH) 230V Submersible A/C Pump
| Brand | March Pumps |
|---|---|
| Model / SKU | LC-5C-MD (0150-0163-0200 / PML1000C Air-Cooled) |
| Country of Origin | USA |
| Pump Category | Air-Cooled Open Motor Magnetic Drive (Seal-less) |
| Primary Application | Marine Air Conditioning Circulation, Engine Room Chilled Water Loops |
| Housing & Impeller Material | Glass Filled Polypropylene with Ceramic Magnet |
| Motor Type | Open Drip Proof (ODP) Air-Cooled Continuous-Duty Motor (Non-Submersible) |
| Inlet / Outlet Port Size | 1" FPT Inlet / 1/2" MPT Outlet |
| Max Flow Rate | 870 GPH (14.5 GPM / 55.0 LPM) |
| Max Head / Pressure | 27.0 ft (8.2 m) / 11.7 PSI |
| Voltage / Frequency | 230V AC / 50/60Hz Single-Phase |
| Current Draw / Amperage | 1.0A @ 230V |
| Submersible Rating | Non-Submersible (Dry-Mounted Flooded Suction Only) |
| Dimensions & Dry Weight | 215 x 140 x 155 mm / 4.0 kg (8.8 lbs) |
| Standard Warranty | 1 Year Limited Manufacturer Warranty |
