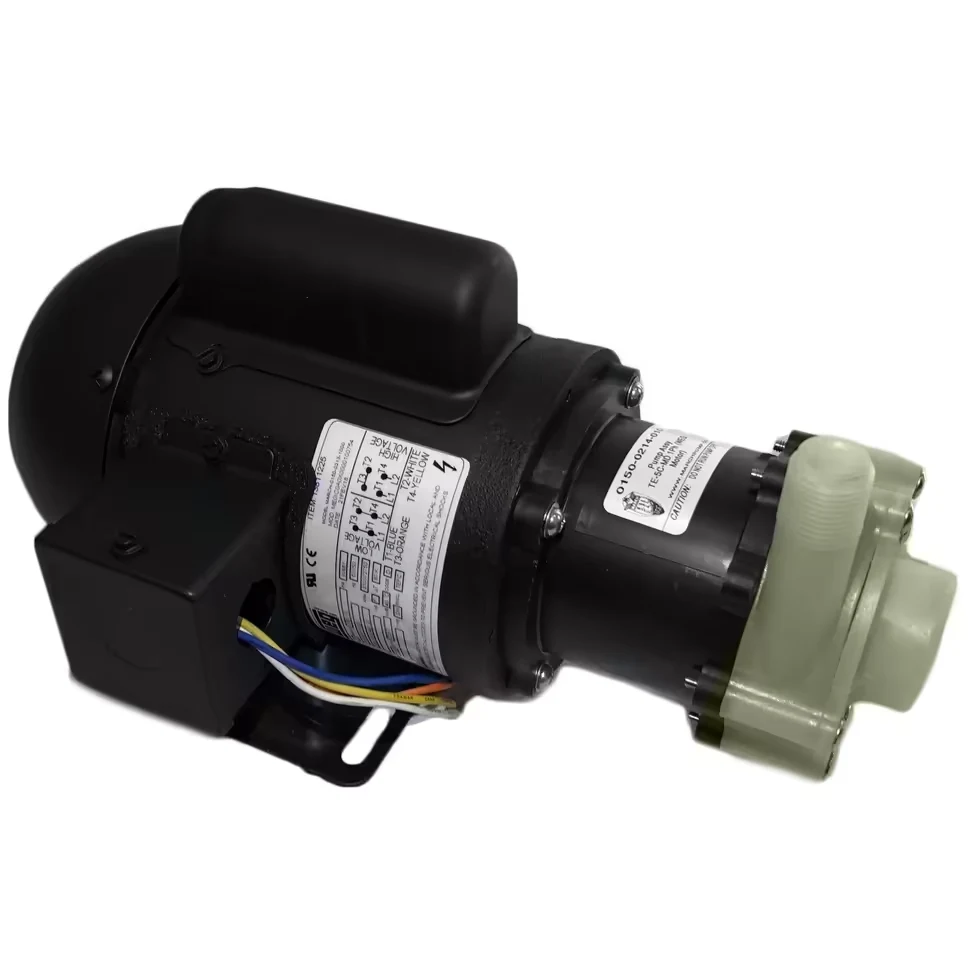

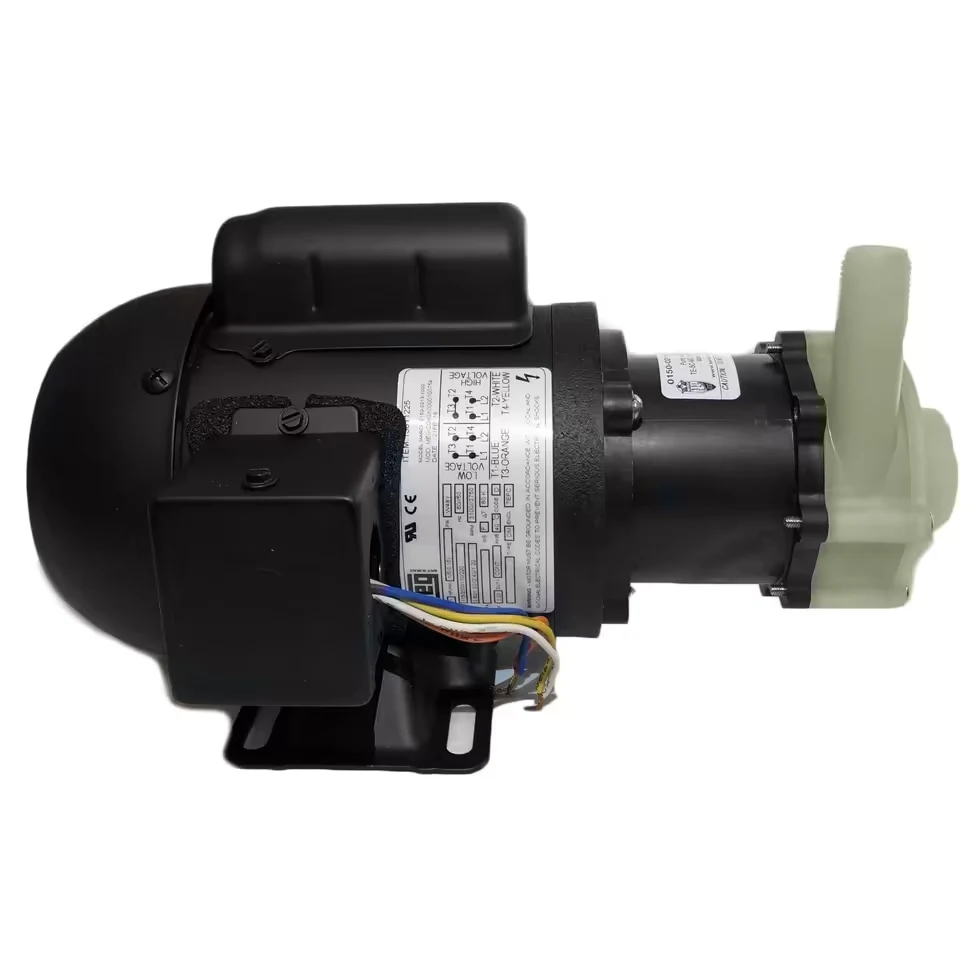

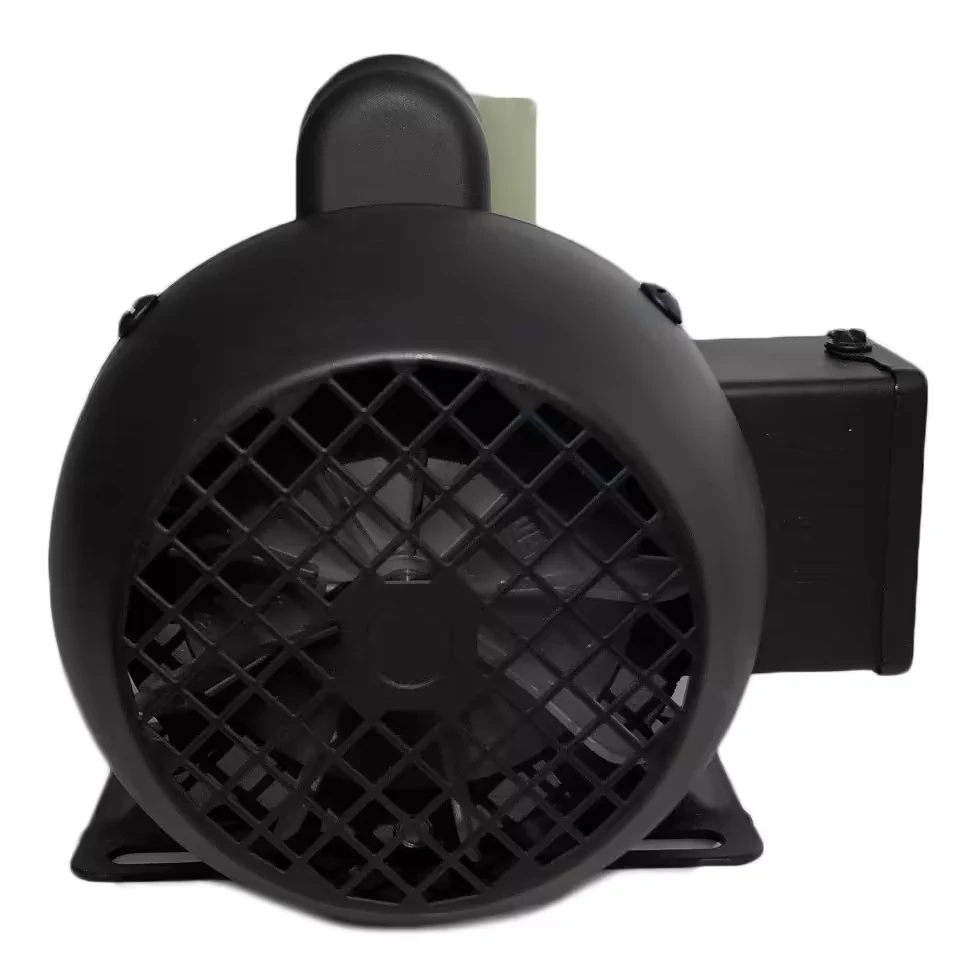

MARCH PUMPS TE-5C-MD Mag Drive Pump – 1 Ph – 18 GPM – 115/230 V – Weg Motor
Powering continuous chemical circulation loops, the MARCH PUMPS TE-5C-MD produces 18 GPM at 29 feet of head, pairing an industrial Weg motor with a glass-filled polypropylene wet end.
- 18 GPM flow feeds circulation loops.
- Weg TEFC motor handles continuous duty.
- Polypropylene body resists aggressive chemical etching.
- Viton O-ring ensures leakproof casing seals.
- 29-foot head overcomes piping friction losses.
$367.22
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
Circulate compatible liquids for general marine circulation, etching systems, and photoprocessing chemical-transfer applications with the March Pumps TE-5C-MD Magnetic Drive Pump with Weg Motor. This industrial seal-less magnetic-drive centrifugal pump provides a maximum rated flow of 1,080 GPH (18 GPM / 68.1 LPM), a maximum head of 29 ft (8.8 m), and maximum pressure of 12.5 PSI.
March Pumps model TE-5C-MD 0151-0070-0100 uses a glass-filled polypropylene body and impeller, ceramic magnet, ceramic shaft, and Viton O-ring. Its 0.125 HP (0.09 kW) Weg TEFC motor operates on 115V or 230V single-phase AC power, with listed full-load current of 3.0A at 115V or 1.5A at 230V. The pump has a 1-inch FPT inlet and 1/2-inch MPT outlet.
Before Ordering
Verify March Pumps model TE-5C-MD 0151-0070-0100, seal-less magnetic-drive centrifugal configuration, compatible fluid use, 1,080 GPH maximum flow, 29 ft maximum head, 12.5 PSI maximum pressure, 115V or 230V single-phase AC requirement, 0.125 HP Weg TEFC motor, listed full-load amperage, polypropylene body and impeller, ceramic magnet and shaft, Viton O-ring, 1-inch FPT inlet, 1/2-inch MPT outlet, 190 degrees F maximum liquid temperature, 375 x 175 x 190 mm dimensions, 22 lb dry weight, and 1-year limited manufacturer warranty before purchase.
Product Specifications
MARCH PUMPS TE-5C-MD Mag Drive Pump - 1 Ph - 18 GPM - 115/230 V - Weg Motor
| Brand | March Pumps |
|---|---|
| Model / SKU | TE-5C-MD (0151-0070-0100 / Weg Motor) |
| Country of Origin | USA |
| Pump Category | Industrial Magnetic Drive Centrifugal (Seal-less) |
| Primary Application | General Marine Circulation, Etching Systems, Photoprocessing Chemical Transfer |
| Body & Impeller Material | Glass Filled Polypropylene Body & Impeller with Ceramic Magnet |
| Shaft & O-Ring Specs | Ceramic Shaft / Viton O-Ring (Seal-less Leakproof Design) |
| Inlet / Outlet Port Size | 1" FPT Inlet / 1/2" MPT Outlet |
| Max Flow Rate | 1080 GPH (18.0 GPM / 68.1 LPM) |
| Max Head / Pressure | 29.0 ft (8.8 m) / 12.5 PSI |
| Voltage / Phase | 115V - 230V / 1-Phase AC |
| Motor Manufacturer & Power | Weg Industrial 0.125 HP (0.09 kW) TEFC Motor |
| Full Load Amperage | 3.0A @ 115V / 1.5A @ 230V |
| Max Liquid Temperature | 87°C (190°F) |
| Dimensions & Dry Weight | 375 x 175 x 190 mm / 9.9 kg (22 lbs) |
| Standard Warranty | 1 Year Limited Manufacturer Warranty |
