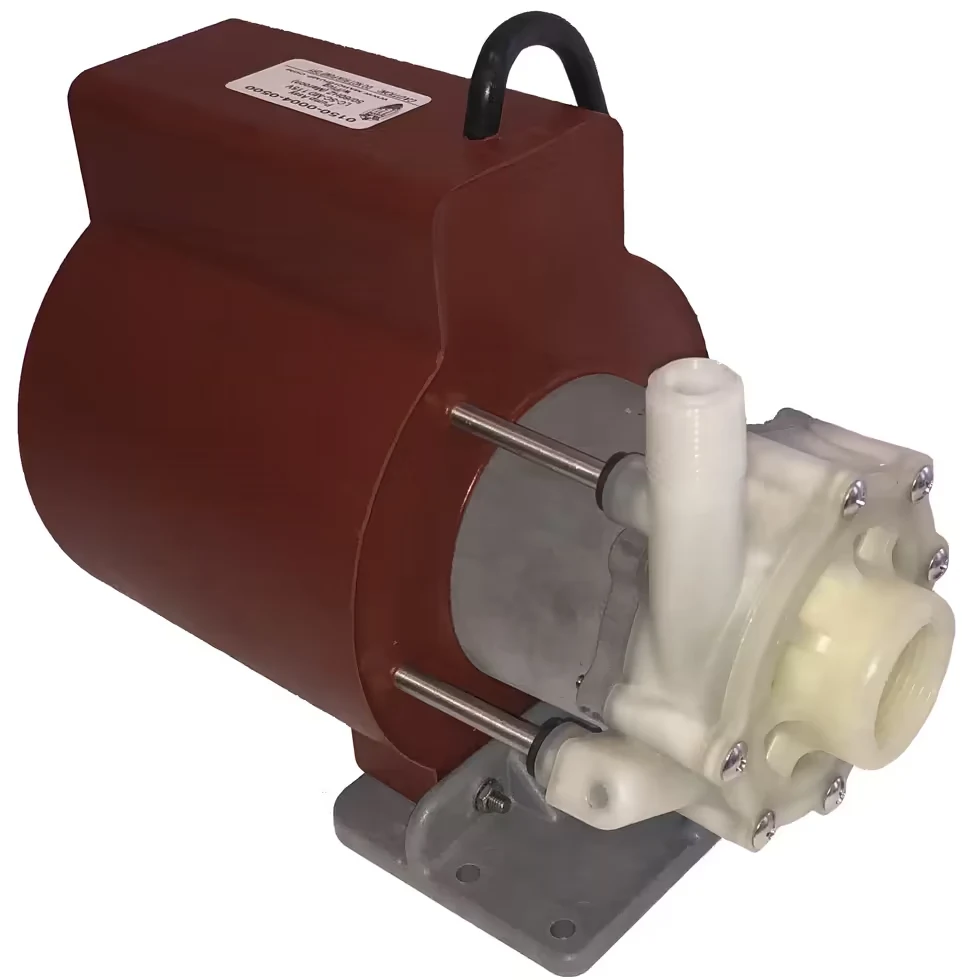

March Pumps LC-5M-MD / PML1000 (1000 GPH) 115V Submersible A/C Pump

Cooling marine air conditioners below deck, the March Pumps LC-5M-MD 115V circulates 1000 GPH at 11.7 PSI, utilizing an epoxy-encapsulated motor and seal-less magnetic drive to prevent shaft leaks.

1000 GPH flow cools marine AC.
115V single-phase motor draws 2.1A.
Epoxy-encapsulated casing enables full bilge submersion.
Seal-less magnetic drive stops fluid leaks.
27-foot head clears hull discharge ports.

$463.76

Availability In stock and available to order

Buy Now

Bulk order support Request for Quotation

Compare Ask a question

Category: Marine Pumps Brand: March Pump SKU: MAR-LC5M-1000-115V-V2

Free standard shipping to eligible destinationsSecure checkout

Circulate seawater for marine air-conditioning systems up to 50,000 BTU with the March Pumps LC-5M-MD PML1000 115V Submersible A/C Pump. This fully submersible seal-less magnetic-drive centrifugal pump provides a maximum rated flow of 1,000 GPH (16.6 GPM / 63.2 LPM), maximum head of 27 ft (8.2 m), and maximum pressure of 11.7 PSI.

March Pumps model LC-5M-MD 0150-0162-0100 uses a polypropylene body, ceramic magnet, and Buna-N O-ring. Its epoxy-encapsulated hermetically sealed submersible motor operates on 115V AC, 50/60 Hz single-phase power and has a listed current draw of 2.1A at 115V. The pump has a 1-inch FPT inlet and 1/2-inch MPT outlet.

Before Ordering

Verify March Pumps model LC-5M-MD 0150-0162-0100 PML1000, fully submersible seal-less magnetic-drive configuration, 115V AC 50/60 Hz single-phase requirement, 2.1A current draw, 1,000 GPH maximum flow, 27 ft maximum head, 11.7 PSI maximum pressure, polypropylene housing, ceramic magnet, Buna-N O-ring, epoxy-encapsulated motor, 1-inch FPT inlet, 1/2-inch MPT outlet, submerged or flooded-suction installation suitability, 200 x 140 x 160 mm dimensions, 9.5 lb dry weight, and 1-year limited manufacturer warranty before purchase.

Product Specifications
