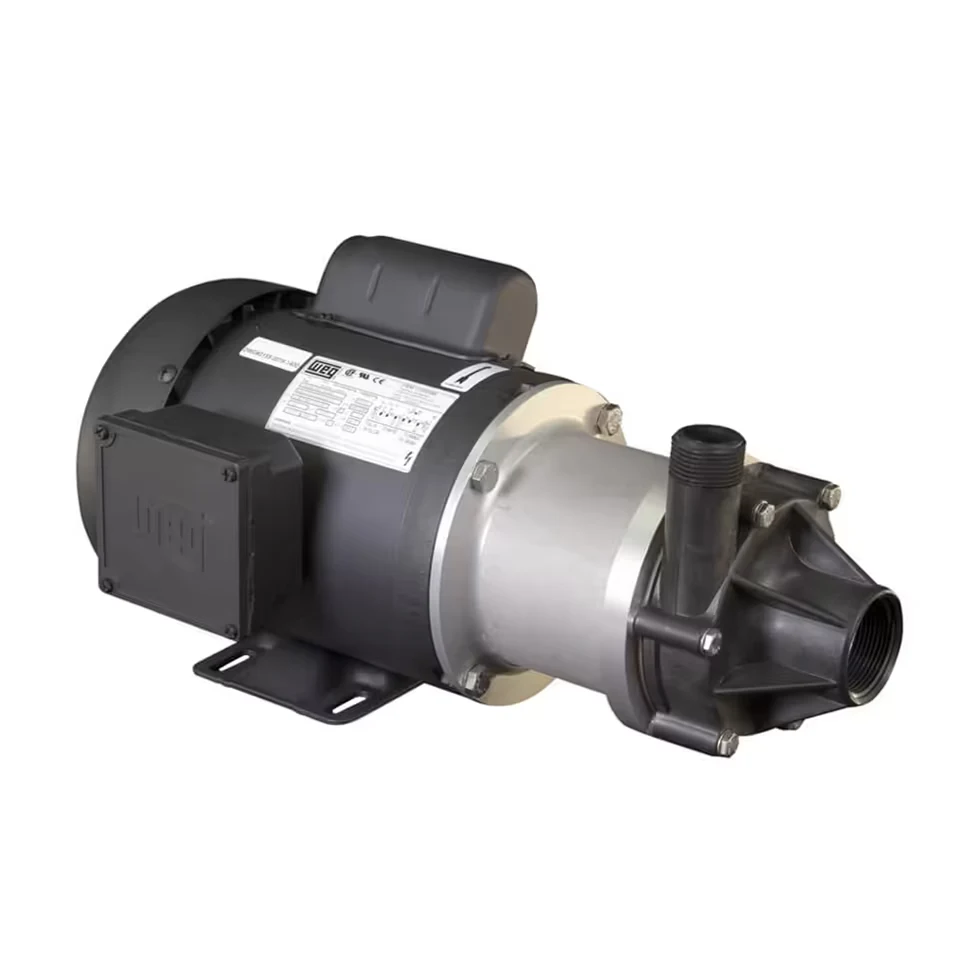

March Pumps TE-7P-MD – 3180 GPH / 53 GPH – 115V-230v – 3 Ph
Circulating raw seawater through commercial chillers, the March Pumps TE-7P-MD 3Ph delivers 3180 GPH at 23 PSI, utilizing a 3-phase 1 HP motor and seal-less magnetic drive to eliminate leaks.
- 3180 GPH flow cools marine chillers.
- 3-phase motor draws 2.8A at 230V.
- Seal-less magnetic drive prevents fluid leaks.
- Polypropylene housing resists harsh saltwater corrosion.
- 53-foot head overcomes piping friction losses.
$480.25
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
Circulate marine HVAC water, chiller fluid, or compatible chemicals with the March Pumps TE-7P-MD 3-Phase Magnetic Drive Centrifugal Pump. This seal-less centrifugal pump is designed for flooded-suction installations and provides a maximum rated flow of 3,180 GPH (53 GPM / 200.6 LPM), up to 53 ft of head, and a listed maximum pressure of 23 PSI.
March Pumps model TE-7P-MD 0155-0010-0100 uses a glass-filled polypropylene housing and impeller, ceramic magnet and shaft, plus a Viton O-ring. It operates on 115V or 230V three-phase AC power with a 1 HP continuous-duty motor. The pump has a 1-1/2-inch FPT inlet and 1-inch MPT outlet.
Before Ordering
Verify March Pumps model TE-7P-MD 0155-0010-0100, three-phase configuration, 115V or 230V AC power, 1 HP continuous-duty motor, 3,180 GPH maximum flow, 53 ft maximum head, 23 PSI maximum pressure, flooded-suction requirement, 1-1/2-inch FPT inlet, 1-inch MPT outlet, polypropylene and ceramic wetted components, Viton O-ring, 190 degrees F maximum liquid temperature, 416 x 205 x 221 mm dimensions, 32 lb dry weight, listed UL recognition and CSA component status, and 1-year limited manufacturer warranty before purchase.
Product Specifications
March Pumps TE-7P-MD (3-Phase)
| Brand | March Pumps |
|---|---|
| Full Model Code / SKU | TE-7P-MD (0155-0010-0100 / 3-Phase) |
| Country of Origin | USA |
| Pump Category | Magnetic Drive Centrifugal (Seal-less) |
| Primary Application | Marine HVAC Circulation, Chemical Transfer, Liquid Chiller Systems |
| Body & Impeller Material | Glass Filled Polypropylene with Ceramic Magnet |
| Shaft & O-Ring Specs | Ceramic Shaft / Viton O-Ring (Seal-less Leakproof Design) |
| Inlet / Outlet Port Size | 1-1/2" FPT Inlet / 1" MPT Outlet |
| Max Flow Rate | 3180 GPH (53 GPM / 200.6 LPM) |
| Max Head / Pressure | 53.0 ft (16.1 m) / 23 PSI |
| Suction Lift Type | Flooded Suction (Non-Self-Priming) |
| Voltage / Phase | 115V - 230V / 3-Phase AC |
| Motor Power Output | 1.0 HP (0.74 kW) Continuous Duty Motor |
| Current Draw / Amperage | 5.6A @ 115V / 2.8A @ 230V |
| Max Liquid Temperature | 87°C (190°F) |
| Dimensions & Dry Weight | 416 x 205 x 221 mm / 14.5 kg (32 lbs) |
| Certifications | UL Recognized, CSA Component |
| Standard Warranty | 1 Year Limited Manufacturer Warranty |
