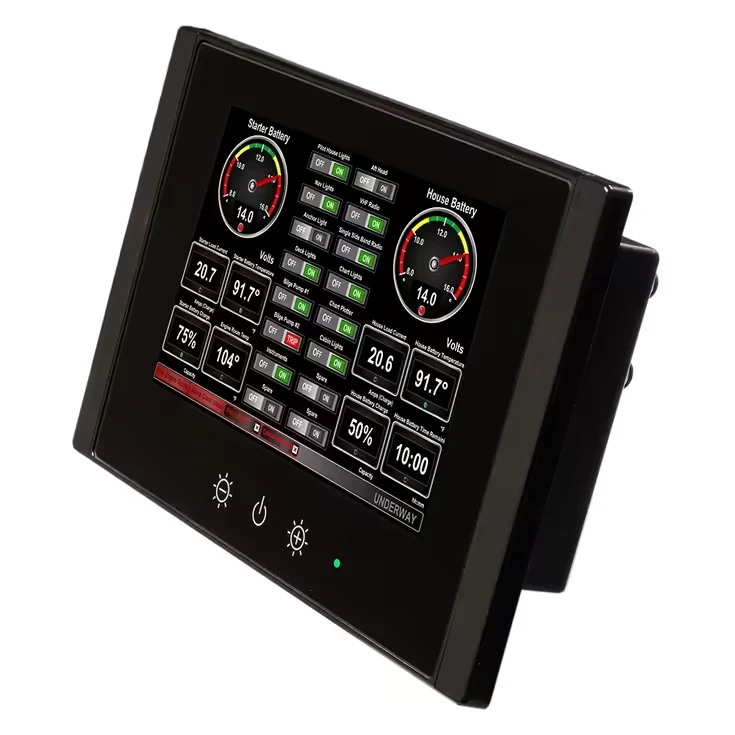

Maretron TSM810C – 8-Inch Vessel Monitoring Control Touchscreen
The Maretron TSM810C supplies an 8-inch vessel monitoring control touchscreen for direct onboard system interface operation.
- 8-inch screen expands monitoring views.
- Touchscreen enables direct control input.
- Vessel monitoring organizes system information.
- Control interface operates connected equipment.
- TSM810C identifies the configuration.
$2,430.00
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
Product Specifications
Product Specifications
| Display Type | Dedicated Vessel Monitoring & Control (N2View) |
|---|---|
| Screen Size | 8-Inch Diagonal |
| Resolution | 800 x 600 SVGA |
| Brightness (Luminance) | 1350 Nits (Ultra High Bright) |
| Aspect Ratio | 4:3 |
| Touchscreen Technology | PCAP Multi-Touch |
| Viewing Angles | 85°/85°/85°/85° |
| Contrast Ratio | 700:1 |
| Video Inputs | N/A (Internal Computer for N2View) |
| Video Outputs | N/A |
| Data Connectivity | RJ45 Ethernet, NMEA 2000 via Gateway |
| Operating Voltage | 9-36V DC |
| Power Consumption (Max) | 15 Watts |
| Backlight Dimming | Full Range Adjustable |
| Housing Material | Marine Grade Plastic / Glass |
| Mounting Options | Flush Mount |
| Waterproof Rating (Front) | IP66 |
| Waterproof Rating (Rear) | IP22 |
| Operating Temperature | -20°C to +70°C |
| Dimensions (WxHxD) | 232 x 184 x 55 mm |
| Weight | 1.9 kg (4.2 lbs) |
| Warranty | 1 Year |
