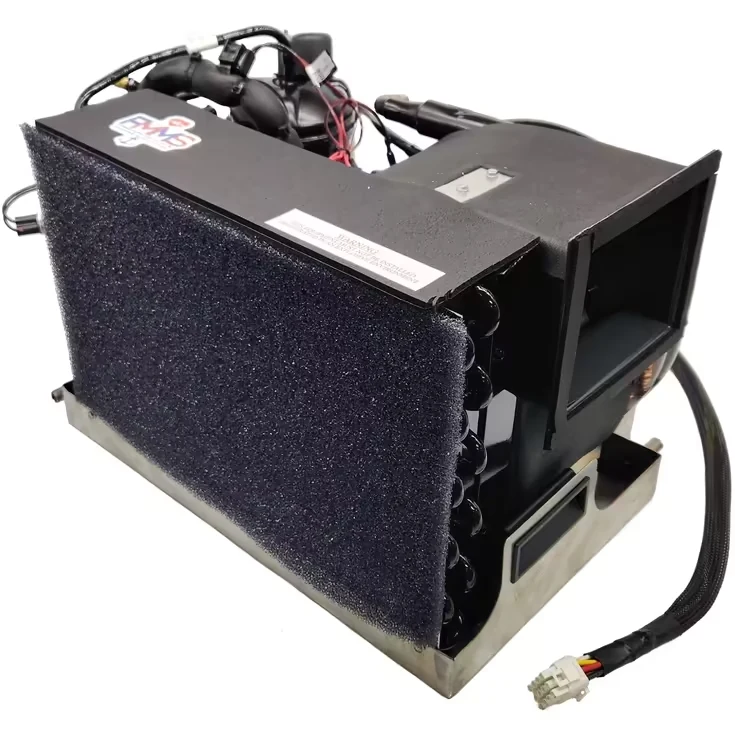

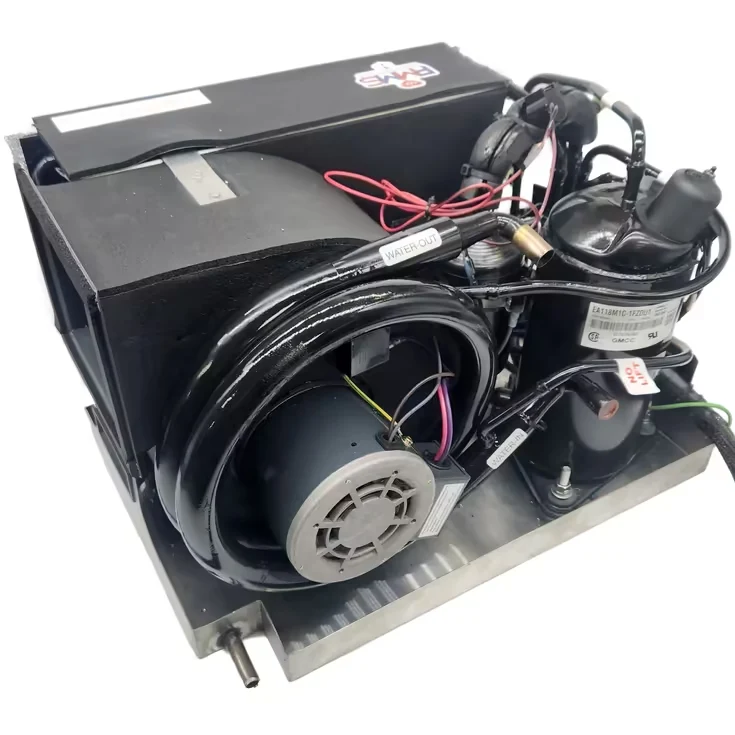

Mermaid M16 16500 BTU 220V Reverse Cycle Heat Pump
The Mermaid M16 heat pump provides 16,500 BTU reverse-cycle capacity with 220V power for marine cooling and heating applications.
- 16,500 BTU output handles medium cabins.
- 220V input guides electrical compatibility.
- Reverse cycle supports heating operation.
- Heat pump delivers dual-mode conditioning.
- Marine installation requires matching power.
$2,162.16
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
Not every boat runs 230V, and the 220V version of the Mermaid M16 Cool and Reverse Cycle brings the same 16,500 BTU cooling and heating platform to vessels wired to that slightly different voltage standard — same construction, same capacity, same installation requirements as its 230V counterpart.
Why Choose the Mermaid M16 (220V)
Electrically, this performs identically to the 230V version at the same 13.5A running amperage — the voltage input is the real distinction, relevant mainly for boats built to or imported from markets using the 220V standard rather than the more common US 230V.
Confirm your vessel is genuinely wired for 220V rather than 230V before ordering, since the two aren’t always interchangeable depending on regional electrical conventions and what’s already installed onboard.
What to Know Before Installing
- Plan for three discharge points: one 8″x6″ grill within 6 feet of the unit, plus two 4″ round vents
- Pump is not included and must be sourced separately
- Verify your vessel’s actual voltage standard (220V vs 230V) before ordering
- All three air discharge positions are available on this model
Product Specifications
Product Specifications
| Brand | Mermaid Marine Air Conditioning |
|---|---|
| Full Model SKU/Code | M-16-H / M16-220V-CHP (Reverse Cycle Variant) |
| Country of Origin | USA |
| AC System Type | Self-Contained Direct-Expansion (DX) Marine AC |
| Cooling Capacity | 16,500 BTU/h (4.8 kW) |
| Heating Capacity | 16,500 BTU/h (Reverse Cycle Heat Pump Mode) |
| Refrigerant Type | R-410A Pre-Charged Environmentally Graded Gas |
| Compressor Technology | High-Efficiency Hermetic Rotary Compressor |
| Operating Voltage / Frequency | 220-240 Volts AC / 50 or 60 Hz Single Phase Platform |
| Full Load Amps / Running Current | Cooling Duty: 5.2 Amps / Heating Duty: 5.8 Amps at 230V Input Cycle |
| Locked Rotor Amps / Starting Current | 26.0 Amps LRA Base Threshold |
| Recommended Circuit Breaker Rating | 15 Amps Heavy-Duty Marine Breaker |
| Required Sea Water Flow Rate | 250 GPH / 15.8 Liters per minute minimum loop |
| Sea Water Inlet/Outlet Size | 5/8" (16mm) Outer Diameter Hose Barb Connections |
| Duct Display / Air Discharge Size | 6.0" (152mm) High-Velocity Air Discharge Collar |
| Condenser Coil Material | Corrosion-Resistant Cupronickel (CuNi 90/10) Coaxial Heat Exchanger Tube |

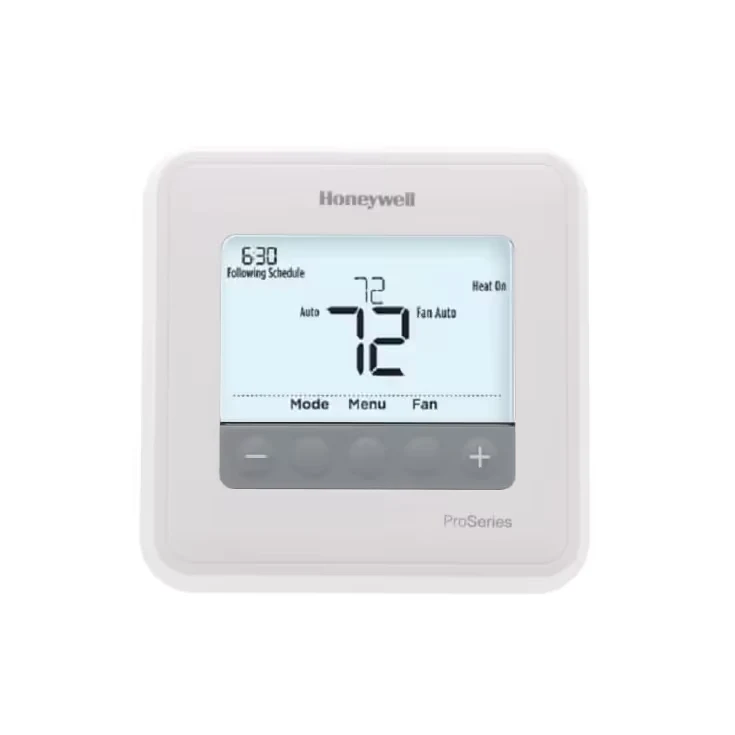

| Control Interface Connectivity | Digital Programmable Thermostat Board (RJ12 Connected Sync Controller Panel) |
| Dimensions (L x W x H) | 53.3 cm x 33.0 cm x 33.0 cm / 21.0" x 13.0" x 13.0" |
| Dry Weight | 29.5 kg / 65.0 lbs (Includes high-strength marine composite condensation base pan) |
| Application | Primary climate control for mid-size vessel main salons, large master staterooms, express cruisers, and enclosed bridge configurations (30-42 ft boat lengths) |
