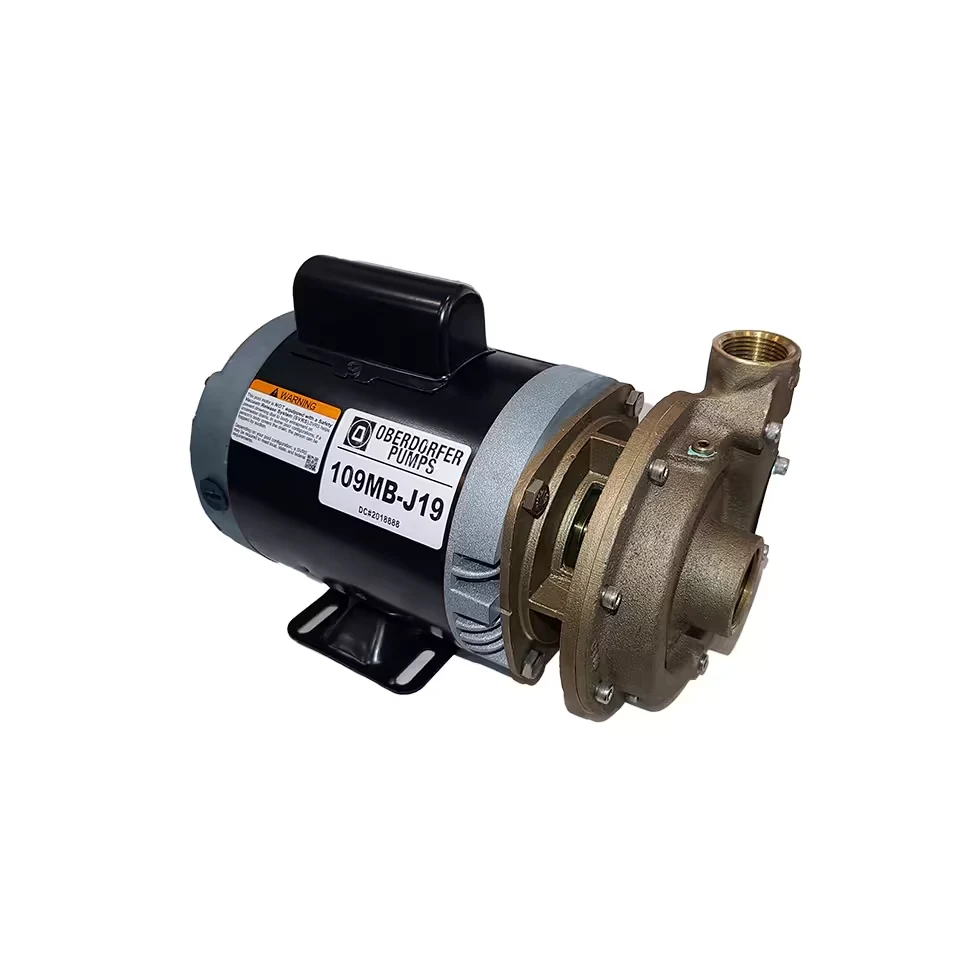

OBERDORFER 109MB-J19 Centrifugal Pump

Rebuilding custom marine chillers, the OBERDORFER 109MB-J19 provides a replacement bronze pump head rated for 900 GPH, mounting directly to J19 frame electric motors at 9.5 PSI.

Bronze pump end replaces worn units.
900 GPH capacity feeds cooling circuits.
J19 frame adapter fits custom motors.
Carbon/ceramic seal stops shaft fluid leaks.
1/2″ NPT ports fit standard plumbing.

$806.40

Availability In stock and available to order

Buy Now

Bulk order support Request for Quotation

Compare Ask a question

Category: Marine Pumps Brand: OBERDORFER SKU: OBD-109MB-J19-V2

Free standard shipping to eligible destinationsSecure checkout

Replace a compatible marine centrifugal pump wet end with the Oberdorfer 109MB-J19 Centrifugal Pump End Assembly. This marine centrifugal wet-end replacement assembly is specified for OEM replacement, custom pumping systems, and auxiliary cooling loops. It provides a maximum rated flow of 900 GPH (15 GPM / 57.0 LPM), maximum head of 22 ft (6.7 m), and maximum pressure of 9.5 PSI when paired with a compatible drive system.

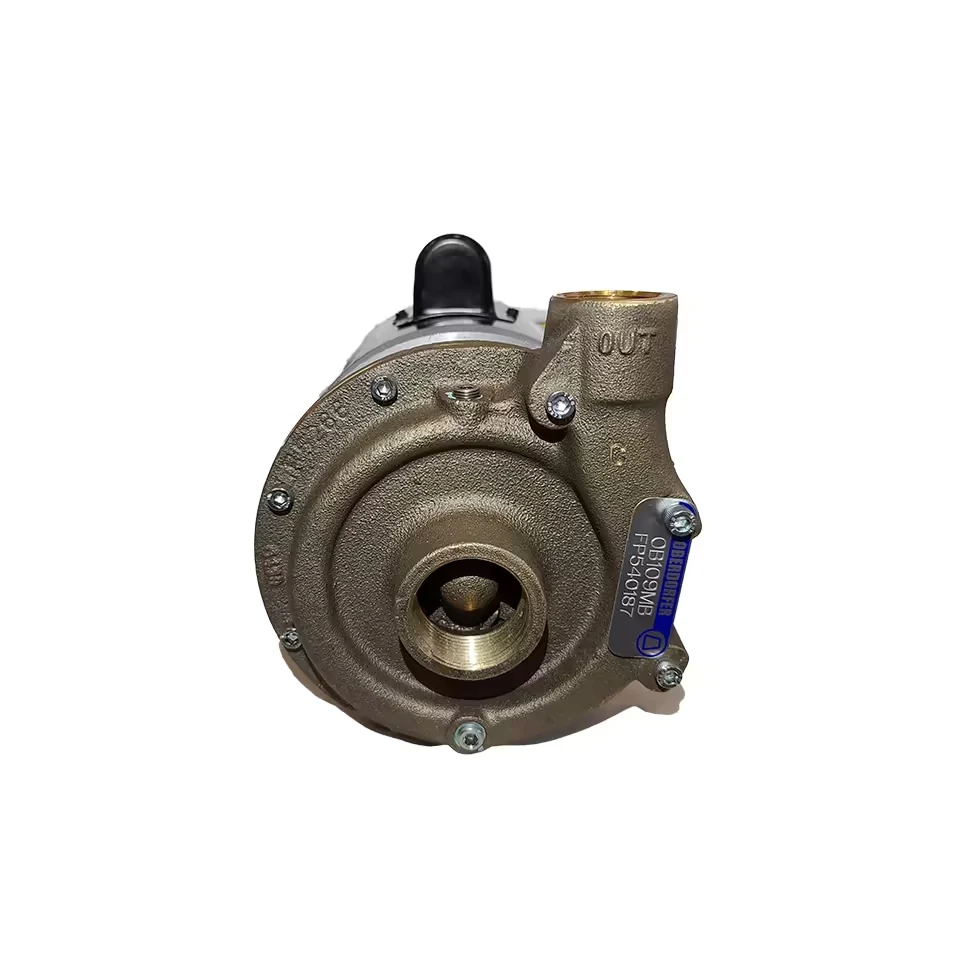

Oberdorfer model 109MB-J19 is a pump-end-only assembly designed for a J19-frame electric C-face motor adapter. It uses heavy-duty cast-bronze construction with a bronze impeller, carbon/ceramic mechanical face seal, and 1/2-inch NPT suction and discharge ports. Maximum continuous liquid temperature is 180 degrees F (82 degrees C).

Before Ordering

Verify Oberdorfer model 109MB-J19, pump-end-only configuration, compatible J19-frame C-face motor adapter, compatible motor speed and rotation, 900 GPH maximum flow, 22 ft maximum head, 9.5 PSI maximum pressure, cast-bronze body and impeller, carbon/ceramic mechanical seal, 1/2-inch NPT suction and discharge ports, 180 degrees F maximum liquid temperature, 180 x 140 x 140 mm dimensions, 10 lb dry weight, and 1-year limited manufacturer warranty before purchase.

Product Specifications
