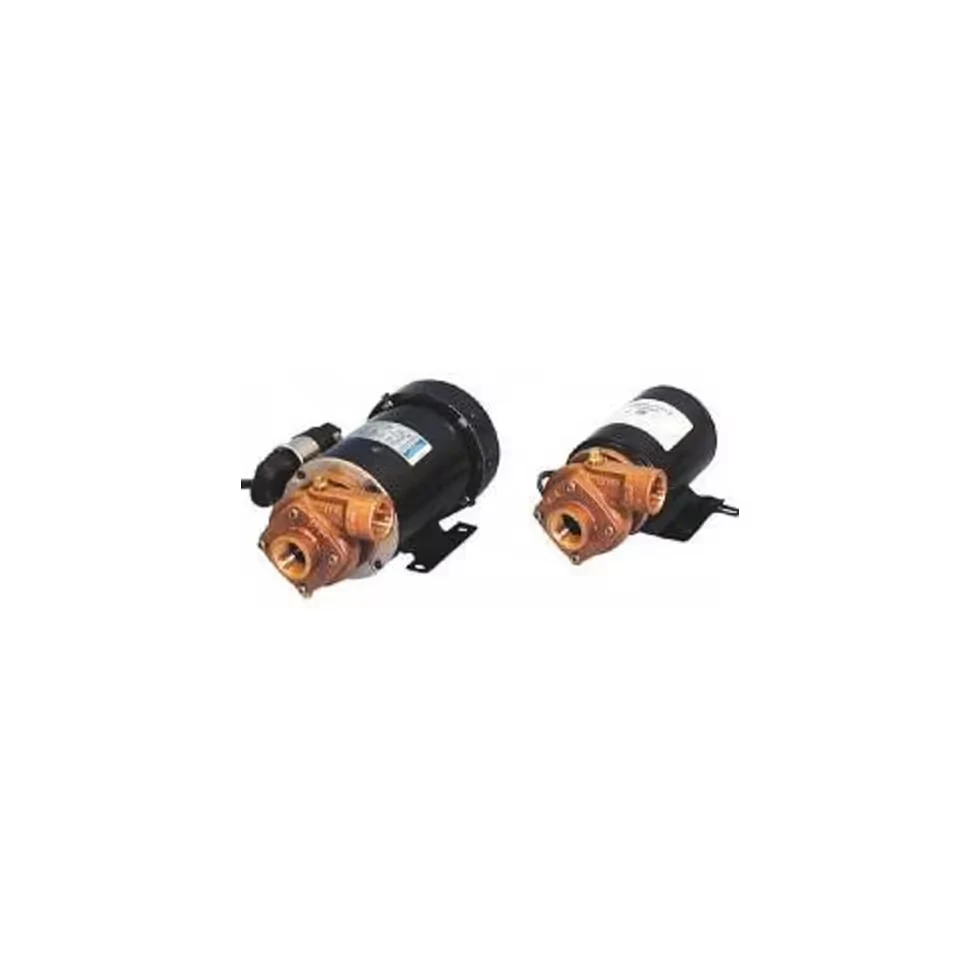

OBERDORFER 172B-S17-A81 Centrifugal Pump

Circulating seawater through marine air conditioning, the OBERDORFER 172B-S17-A81 produces 1200 GPH at 9.5 PSI, combining a 1/8 HP 115V motor with an industrial Viton lip seal.

1200 GPH flow feeds AC chillers.
Viton lip seal resists hot chemicals.
1/8 HP motor draws minimal amperage.
Cast bronze casing eliminates rust formation.
22-foot head overcomes piping friction losses.

$427.17

Availability In stock and available to order

Buy Now

Bulk order support Request for Quotation

Compare Ask a question

Category: Marine Pumps Brand: OBERDORFER SKU: OBD-172B-S17-A81-V2

Free standard shipping to eligible destinationsSecure checkout

Circulate water for marine air conditioning, baitwell supply, or compatible hot-water liquid-transfer systems with the Oberdorfer 172B-S17-A81 Marine Centrifugal Pump. This close-coupled, non-self-priming marine centrifugal pump delivers a maximum rated flow of 1,200 GPH (20 GPM / 75.7 LPM), maximum head of 22 ft (6.7 m), and maximum pressure of 9.5 PSI.

Oberdorfer model 172B-S17-A81 uses a 0.125 HP (1/8 HP) continuous-duty motor operating on 115V AC, 60 Hz single-phase power. It has a cast marine-bronze casing, semi-open bronze impeller, and S17 industrial Viton lip seal with stainless garter spring. The pump has 3/4-inch NPT suction and discharge ports.

Before Ordering

Verify Oberdorfer model 172B-S17-A81, close-coupled non-self-priming configuration, 0.125 HP continuous-duty motor, 115V AC 60 Hz single-phase requirement, 1,200 GPH maximum flow, 22 ft maximum head, 9.5 PSI maximum pressure, cast-bronze casing, semi-open bronze impeller, S17 Viton lip seal with stainless garter spring, 3/4-inch NPT suction and discharge ports, 245 x 135 x 155 mm dimensions, 12 lb dry weight, and 1-year limited manufacturer warranty before purchase.

Product Specifications
