Phasor KK3-9.5 – 9.5kW Keel Cooled Diesel Generator 60Hz
Operating without raw-water strainers in silty estuaries, the Phasor KK3-9.5 marine powerplant extracts 9.5 kW at 60Hz from a 1261cc 3-cylinder Kubota diesel, driving an 1800-RPM keel-cooled circuit across a 490-lb chassis.
- Keel-cooled closed loop prevents seawater pump failure
- 9.5 kW continuous output handles heavy cabin loads
- Heavy-duty Kubota block sustains prolonged commercial duty
- Consumes 3.40 L/h at full electrical load
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout

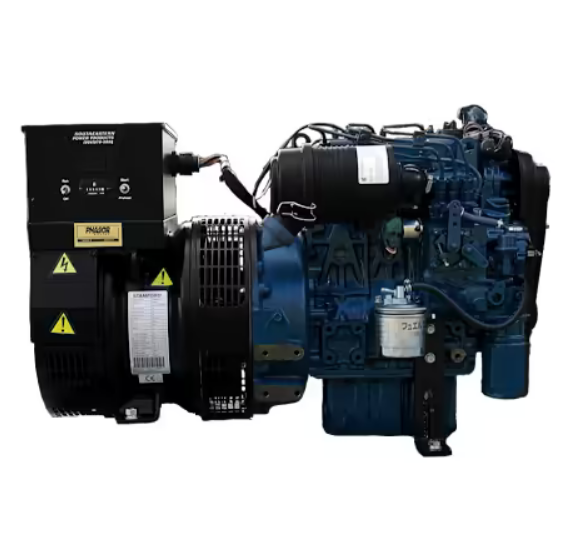

The Phasor KK3-9.5 is a keel-cooled marine diesel generator for vessels requiring 9.5 kW of 120/240V single-phase 60Hz power. It uses a Kubota D1305-E3BG three-cylinder diesel engine operating at 1,800 RPM with a direct-coupled brushless generator and solid-state voltage regulation. The open-frame configuration is designed for installations with a suitably engineered closed-loop keel-cooling, grid-cooling, or skin-cooling arrangement.
The generator uses an engine-driven circulation pump to move coolant through the vessel cooling circuit. An optional sound enclosure may be selected separately where sound attenuation is needed. The supplied remote gauge panel provides oil pressure, coolant temperature, voltage, and operating-hour information, while automatic protection shuts down the generator for low oil pressure or high coolant temperature.
Before Ordering
Confirm required continuous and surge load within 9.5 kW, 120/240V single-phase 60Hz compatibility, adequate closed-loop keel-, grid-, or skin-cooling capacity, available installation space, structural support for approximately 222 kg, sound-enclosure requirement, diesel fuel layout, exhaust route, ventilation, starting-battery circuit, AC distribution and transfer-switch design, grounding plan, service access, and qualified installation requirements before purchase.
Product Specifications
| Key Specifications | |
|---|---|
| Voltage | Keel-cooled marine diesel generator for 120/240V single-phase 60Hz AC systems. |
| Power / Output | Provides 9.5 kW continuous output at 1,800 RPM. |
| Engine / Motor | Uses a Kubota D1305-E3BG three-cylinder diesel engine with approximately 1,261 cc displacement. |
| Voltage | Provides 120/240V output with approximately 79A at 120V or 39.5A at 240V. |
| Voltage | Uses a direct-coupled brushless generator with solid-state voltage regulation. |
| Feature | Requires a closed-loop keel-cooling, grid-cooling, or skin-cooling circuit. |
| Feature | Fuel consumption is listed at approximately 0.90 US gallons per hour, or 3.40 L per hour, at full load. |
| Weight | Open-frame generator measures approximately 864 mm by 508 mm by 559 mm and weighs approximately 222 kg. |
