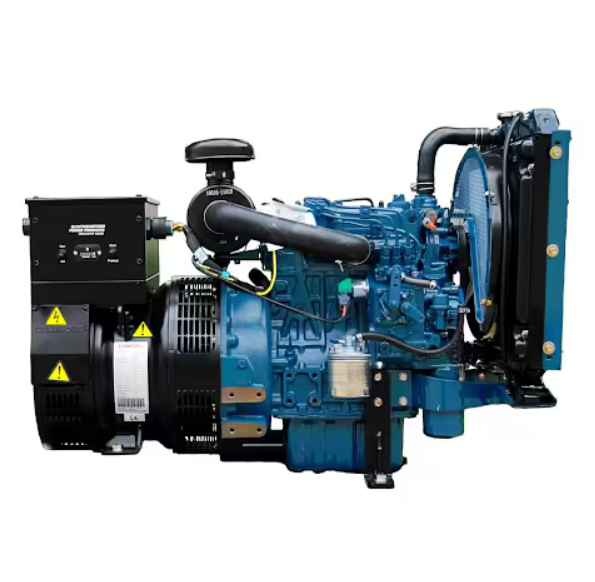

Phasor SEP-9.5 Radiator Cooled Diesel Generator 9.5kW 60Hz
Stationary deckhouses and auxiliary workboats draw power from the Phasor SEP-9.5 commercial genset, which drives a 1261cc 3-cylinder Kubota engine through an integral radiator, generating 9.5 kW at 1800 RPM across a 520-lb open skid.
- Integral radiator fan eliminates raw-water pump maintenance
- 9.5 kW prime power runs heavy workshop tools
- Three-cylinder Kubota block provides low-vibration power generation
- Consumes 3.40 L/h diesel at full electrical load
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
The Phasor SEP-9.5 is a radiator-cooled diesel generator for applications requiring 9.5 kW of 120/240V single-phase 60Hz AC power. It uses a Kubota D1305-E three-cylinder diesel engine running at 1,800 RPM and a direct-coupled brushless generator with solid-state voltage regulation. The open-skid unit relies on its integrated radiator and engine-driven blower fan for cooling rather than a raw-water heat exchanger or keel-cooling circuit.
The generator includes a deluxe remote instrument panel with oil-pressure, coolant-temperature, voltage, and hour-meter gauges, plus automatic shutdown for low oil pressure and high coolant temperature. Proper installation requires sufficient airflow for radiator cooling, a correctly engineered exhaust route, diesel fuel system, start battery, AC distribution, grounding, and shore-power transfer equipment.
Before Ordering
Confirm required continuous and surge load within 9.5 kW, 120/240V single-phase 60Hz compatibility, available 914 mm by 533 mm by 610 mm installation space, structural support for approximately 236 kg, sufficient radiator ventilation, diesel fuel layout, exhaust route, starting-battery circuit, AC distribution and transfer-switch design, grounding plan, service access, and qualified installation requirements before purchase.
Product Specifications
Phasor SEP-9.5 Radiator Cooled Diesel Generator 9.5kW 60Hz
| Brand | Phasor Marine |
|---|---|
| Full Model SKU / Code | SEP-9.5 |
| Generator Type | Radiator-Cooled Stationary / Marine Auxiliary Diesel Generator |
| Continuous Power Output | 9.5 kW / 9.5 kVA |
| Voltage Output | 120 V / 240 V (Single Phase) |
| Frequency Output | 60 Hz |
| Engine Operating Speed | 1800 RPM |
| Engine Manufacturer & Model | Kubota D1305-E Marine Diesel Engine |
| Number of Cylinders | 3 Cylinders |
| Displacement | 1261 cc |
| Cooling System Type | Integral Radiator Cooling with Engine-Driven Blower Fan |
| Cooling Pump Type | Engine Gear-Driven Coolant Circulation Water Pump |
| Fuel Type | Marine Diesel / Ultra-Low Sulfur Diesel |
| Fuel Consumption (Average) | 0.90 gal/h (3.40 L/h) @ 100% load |
| Sound Insulation Enclosure | Open Skid Frame |
| Noise Level | 67 dB(A) @ 1m |
| Dimensions (L x W x H) | 914 x 533 x 610 mm (36.0 x 21.0 x 24.0 in) |
| Dry Weight | 236 kg (520 lbs) |
| Control Panel | Deluxe Remote Gauge Panel with Engine Monitoring System |
| Safety Protection Systems | Automatic Shutdown for Low Oil Pressure & High Coolant Temp |
