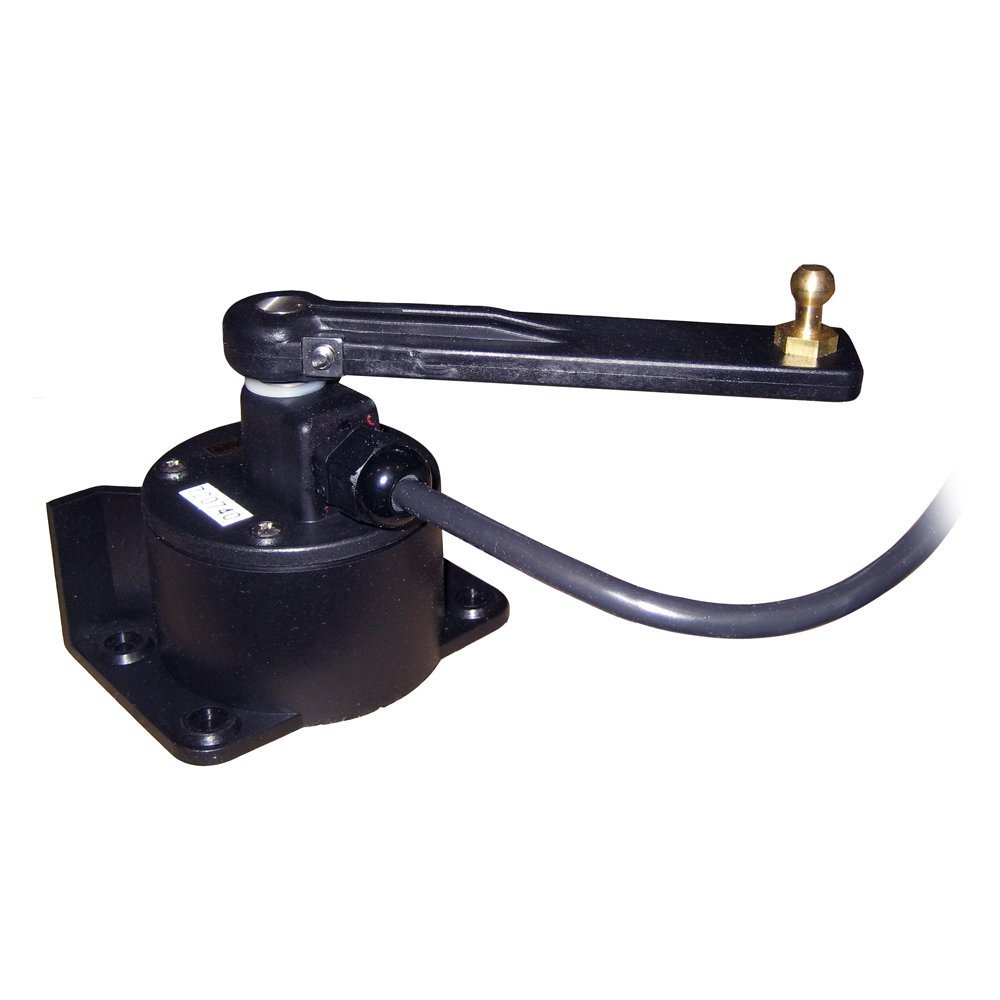

SI-TEX Rotary Rudder Feedback 50 Foot Cable Unit
Long cable runs between rudders and wheelhouse processors stay signal-clear with this SI-TEX RF-50 rudder feedback, which uses a 50-foot shielded cable and stainless steel linkage arm to transmit continuous position data at 5V to 12V.
- 50-foot cable supports long commercial hull runs
- Stainless steel linkage connects to steering quadrants
- IPX7 waterproof enclosure prevents bilge moisture ingress
- High-precision potentiometer tracks real-time rudder position
$400.50
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
The SI-TEX Rotary Rudder Feedback 50 Foot Cable Unit, SKU RF-50 or 11500-0010, is a standalone rudder-position sensor for compatible SI-TEX autopilot systems. It measures actual rudder movement through a stainless steel mechanical linkage arm connected to a steering quadrant, rudder post, or suitable outboard tie-bar arrangement. The sensor is designed for powerboats and sailboats with mechanical or hydraulic steering where a physical rudder-angle signal is required by the autopilot computer.
The unit includes 50 ft, or 15.2 m, of permanently connected cable and a rotary rudder-feedback linkage kit. SI-TEX documentation identifies the rotary rudder-feedback part as 20330008 and confirms that it includes the 50 ft cable plus linkage kit. The RF-50 uses an analog resistive or variable-voltage processor connection and receives 5V to 12V DC from the compatible autopilot computer. [281][283]
Before Ordering
Confirm compatible autopilot-computer input, physical access to a rudder post, steering quadrant, or tie bar, adequate linkage travel, 50 ft cable-routing distance, 5V to 12V sensor supply, protected mounting position, manual centering procedure, software rudder-limit setup, and all required steering and autopilot components before purchase.
Product Specifications
SI-TEX Rotary Rudder Feedback 50 Foot Cable Unit
| Brand | SI-TEX |
|---|---|
| Full Model SKU/Code | RF-50 / 11500-0010 |
| Country of Origin | USA |
| Component Type | Autopilot Rudder Feedback Sensor Only (Requires Autopilot Computer) |
| Vessel Hull Type Compatibility | Powerboats and Sailboats (With Inboard Rudders or Outboard Tie-Bars) |
| Steering System Type Compatibility | Mechanical and Hydraulic Systems Integrated with Steering Quadrants |
| Operating Voltage | 5 Volts DC to 12 Volts DC (Supplied by Autopilot Course Computer) |
| Data Networking Protocols | Analog Resistive / Variable Voltage Interface (Direct Processor Connection) |
| Waterproof Rating | IPX7 Heavy Duty Waterproof Sealed Enclosure Case |
| Material & Finish | Corrosion-Resistant Reinforced Marine Composite Body with Stainless Steel Mechanical Linkage Arm |
| Calibration Method | Manual Physical Linkage Centering and Software Rudder Limits Alignment |
| Smart Technology Features | High-Precision Potentiometer Core Tracking, Continuous Real-Time Rudder Position Sensing |
| Dry Weight | 0.9 kg / 2.0 lbs (Sensor Unit, Linkage Arm, and Cable Combined) |
| Application | Commercial workboats, trawlers, and mid-to-large multi-engine inboard/outboard coastal vessels requiring extended cable routing up to 50 feet (25-60 ft boat lengths) |
