VTE Paguro 9000 – 8.5kVA Marine Generator 3600 RPM
Dampening mechanical noise inside crowded cruiser bilges, this VTE Paguro 9000 sound-shielded genset burns 2.2 L/h across a 686cc Lombardini twin, producing 8.0 kW at 120V/240V 60Hz within a 53 dBA capsule at 130 kg.
- 8.0 kW continuous output powers 60Hz vessel grids
- 53 dBA multilayer fiberglass capsule suppresses engine clatter
- Water-cooled alternator shell prevents engine room heat buildup
- Dual heat exchanger cooling isolates raw seawater
- Weighs 130 kg easing mid-size yacht mounting
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout

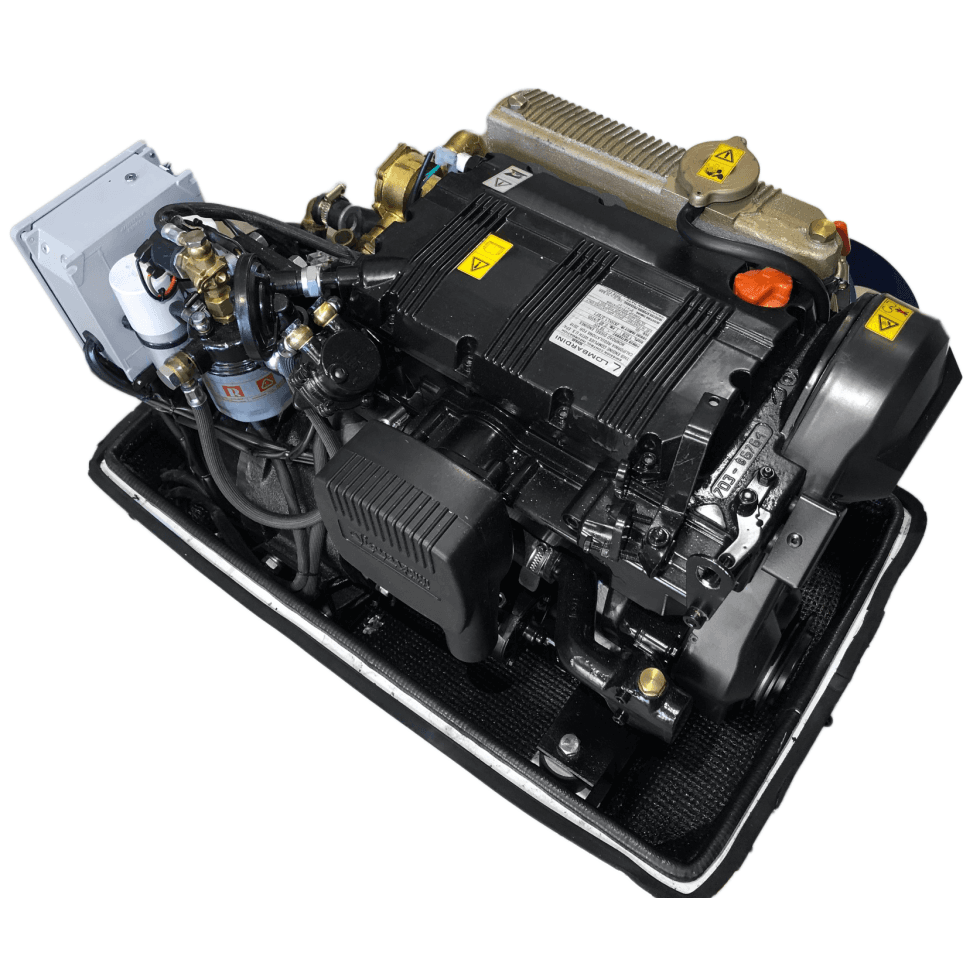

The VTE Paguro 9000 is a high-speed marine diesel generator for 60Hz AC systems. In the 60Hz configuration, it delivers 8.5 kW continuous output, or 10 kVA, at 3,600 RPM and uses a Lombardini LDW 702 two-cylinder diesel engine with a water-cooled brushless synchronous alternator. It is available for 115V or 115/230V single-phase output, depending on the exact alternator configuration.
The generator uses freshwater cooling through a heat exchanger and a self-priming raw-water pump, with a stainless-steel water jacket cooling the alternator. It is housed in a reinforced fiberglass soundproof capsule and includes remote LCD controls with hour meter, load indication, frequency or engine-speed display, automatic start, and low-oil-pressure plus over-temperature protection.
Before Ordering
Confirm required continuous and surge load within 8.5 kW, exact 115V or 115/230V single-phase 60Hz configuration, available installation space, structural support, diesel fuel-system layout, raw-water intake, exhaust route, ventilation capacity, starting-battery circuit, remote-panel cable route, AC distribution and transfer-switch design, grounding plan, service access, and qualified marine-generator installation requirements before purchase.
Product Specifications
VTE Paguro 9000 - 8.5kVA Marine Generator 3600 RPM
| Brand | VTE Paguro |
|---|---|
| Full Model SKU / Code | Paguro 9000 |
| Generator Type | High-Speed Marine Diesel Generator (60Hz Specification) |
| Continuous Power Output | 8.0 kW / 8.5 kVA |
| Voltage Output | 120 V / 240 V (Single Phase) |
| Frequency Output | 60 Hz |
| Engine Operating Speed | 3600 RPM |
| Engine Manufacturer & Model | Lombardini LDW 702 FOCS Diesel Engine |
| Number of Cylinders | 2 Cylinders |
| Displacement | 686 cc |
| Cooling System Type | Dual Cooling System (Heat Exchanger Freshwater/Seawater) |
| Cooling Pump Type | Water-Cooled Alternator Shell & Engine Jacket with Bronze Raw Water Pump |
| Fuel Type | Marine Diesel |
| Fuel Consumption (Average) | 2.2 L/h @ 75% load |
| Sound Insulation Enclosure | Multilayer Soundproof Fiberglass Capsule Enclosure |
| Noise Level | 53 dB(A) @ 7m |
| Dimensions with Sound Shield (L x W x H) | 660 x 460 x 500 mm |
| Dry Weight | 130 kg |
| Control Panel | Remote Digital Control Panel with Auto-Start & System Diagnostics |
| Safety Protection Systems | Low Oil Pressure, High Water Temperature, Over-Speed Auto Shutdown |
