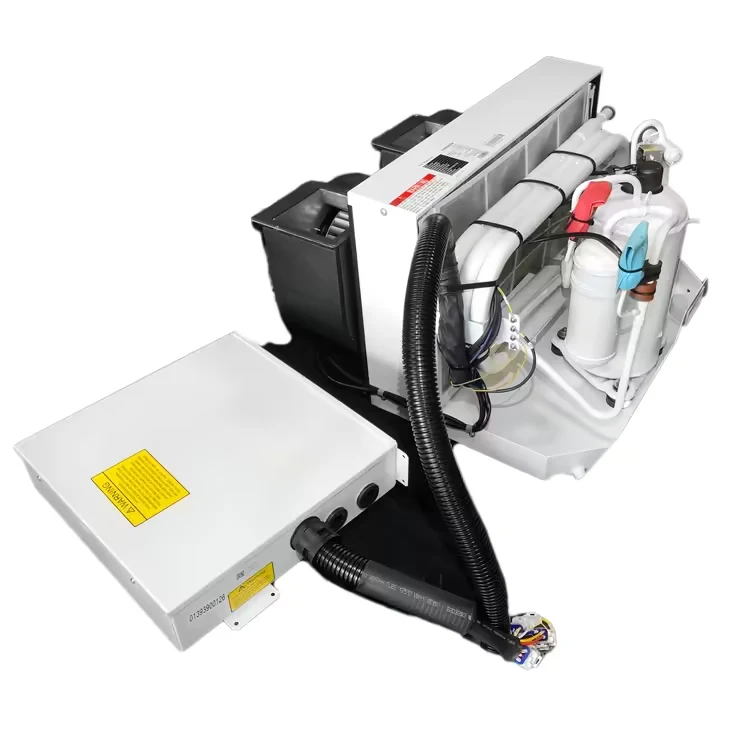

Webasto FCF Platinum 25,000 – BTU Marine Air Conditioner – 230V
Webasto FCF Platinum delivers 25,000 BTU marine air conditioning through 230V power for larger vessel climate systems aboard.
- 25,000 BTU capacity handles larger cabins.
- 230V input matches listed systems.
- FCF Platinum identifies the product series.
- Marine air conditioner serves vessel interiors.
- Capacity guides larger installation planning.
$1,900.60
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
Large open salons and galley layouts require more capacity than small cabin systems can provide. The Webasto FCF Platinum 25,000 delivers 25,000 BTU/h of cooling and 25,000 BTU/h of reverse-cycle heating from a 230V self-contained marine air conditioner. Its 7.33 kW cooling capacity, 610 CFM airflow, and application guidance for spaces up to 1,400 cubic feet suit substantial yacht interiors.
Who This Unit Is Not Ideal For
This model is not intended for 115V-only vessels, compact cabins, or spaces that do not require 25,000 BTU/h capacity. Its size, weight, duct diameter, electrical demand, and seawater flow should be checked carefully before installation.
Warranty and Product Summary
The Webasto FCF Platinum 25,000 includes a 2-year factory warranty. It combines 230V cooling and reverse-cycle heating with 610 CFM airflow for compatible large yacht salons, galley areas, and open interior layouts.
Product Specifications
Product Specifications
| Brand | Webasto |
|---|---|
| Exact Model Code / SKU | FCF Platinum 25,000 (230V Variant) |
| Country of Origin | Germany |
| System Architecture | Self-Contained Marine A/C System |
| Cooling Capacity - BTU/h | 25,000 BTU/h |
| Cooling Capacity - kW/Watts | 7.33 kW |
| Heating Capacity - BTU/h | 25,000 BTU/h |
| Reverse Cycle Heating Function | Yes |
| Electrical Voltage | 230V |
| Alternating Current Frequency | 50/60 Hz |
| Electrical Phase | Single Phase |
| Full Load Amps - FLA Cooling | 8.2 A |
| Full Load Amps - FLA Heating | 9.5 A |
| Locked Rotor Amps - LRA | 45 A |
| Max Circuit Breaker Size | 25 A |
| Refrigerant Type | R-410A |
| Compressor Type | Hermetic Scroll |
| Seawater Water Flow Rate | 8.33 GPM (500 GPH) |
| Seawater Inlet Pipe Size | 5/8 inch (16 mm) |
| Seawater Outlet Pipe Size | 5/8 inch (16 mm) |
| Evaporator Airflow Capacity | 610 CFM |
| Duct Discharge Connection Diameter | 7 inches (178 mm) |
| Condensate Drain Connection Size | 1/2 inch (12.7 mm) |
| Physical Dimensions - Unit | 15.4 x 21.0 x 14.8 inches (391 x 533 x 376 mm) |
| Net Weight | 88.2 lbs (40.0 kg) |
| Chassis & Condenser Material | Stainless Steel Pan & Marine-Grade Baked Enamel Chassis, Cupronickel Condenser Coil |
| Standard Factory Warranty | 2 Years |
| Application & Sizing Guidance | Maximum capacity standard self-contained yacht unit built to handle massive open spaces, main salons, or galley layouts up to 1,400 cu.ft, min generator 5.5 kW. |
