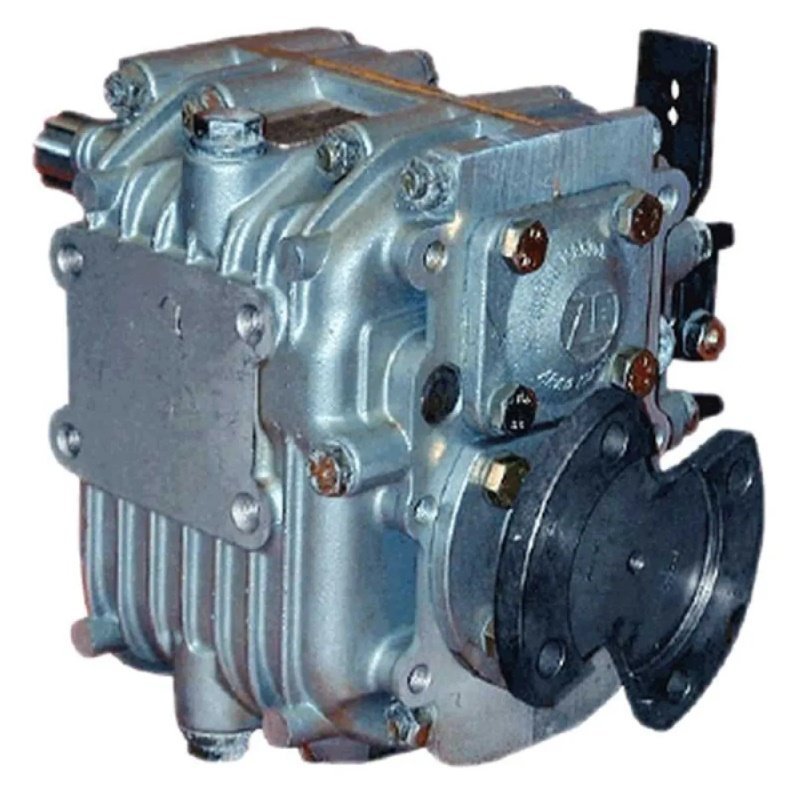

ZF 12M 2.14:1 Marine Gearbox

Match a light-displacement drivetrain with the ZF 12M 2.14:1 Marine Gearbox. This marine gearbox is specified for light displacement hulls, with a 2.14:1 reduction ratio and a parallel output configuration with offset.

Model ZF12M-214 uses a mechanical cone clutch and has a maximum pleasure-use input rating of 55 HP (41 kW) at 4,500 RPM. Its maximum input speed is 5,000 RPM. The supplied service data lists ATF Dexron II or III, a 0.08-gallon (0.30-liter) oil capacity, and a dry weight of 28.6 lb (13 kg).

Fitment and Propulsion Use

The ZF 12M-214 is specified for light displacement hulls. It supports propulsion systems requiring a 2.14:1 reduction ratio and a parallel offset output configuration. The supplied product data lists a pleasure-use power rating but does not provide a continuous-duty power rating. Confirm fitment using the engine model, serial number, rated torque, operating RPM, reduction ratio, and manufacturer drivetrain documentation before ordering.

Before Ordering the ZF 12M

Verify that ZF Marine model ZF12M-214 is suitable for your light-displacement-hull propulsion system. Confirm the 2.14:1 reduction ratio, parallel offset output configuration, 55 HP (41 kW) maximum pleasure rating at 4,500 RPM, 5,000 RPM maximum input speed, mechanical cone clutch, ATF Dexron II or III oil requirement, 0.08-gallon (0.30-liter) oil capacity, and 28.6 lb (13 kg) dry weight. Confirm compatibility with your engine manufacturer’s documentation before purchase.
