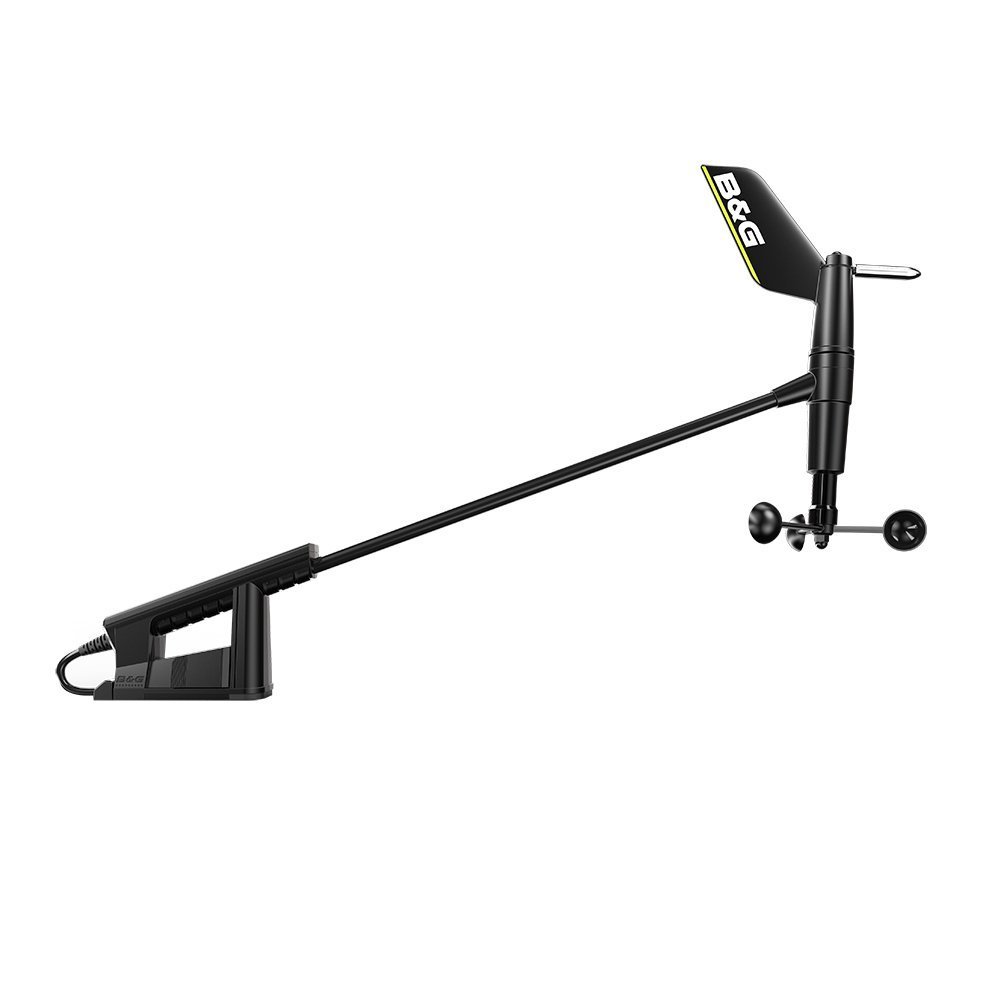

B&G WS310 Wired Wind Sensor Pack Transducer Kit
B&G WS310 Wired Wind Sensor Pack includes a transducer kit for wired masthead wind measurement in compatible sailing systems.
- WS310 identifies the sensor platform.
- Wired pack uses physical connections.
- Transducer kit supplies wind hardware.
- Masthead sensor measures wind conditions.
- Compatible displays remain necessary here.
$449.10
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
Product Specifications
Product Specifications
| Brand | B&G (Navico) |
|---|---|
| Full Model SKU/Code | 000-14382-001 (WS310 Wired Wind Pack) |
| Country of Origin | Mexico |
| Gauge Type | High-Precision Wind Speed & Direction Masthead Transducer Kit |
| Monitored Parameters | Apparent Wind Speed, Apparent Wind Angle, True Wind Data Processing (When networked with speed logs) |
| Data Bus / Protocol Compatibility | High-Speed NMEA 2000 Network Bus Infrastructure via Included NMEA 2000 Wired Interface Block |
| Mounting Method / Cutout Size | Masthead Pivot Mount Bracket Base with Threaded Spar Arm Lock Ring Assembly |
| Operating Voltage | 12 Volts DC (Supplied directly from the NMEA 2000 backbone drop node line) |
| Current Draw / NMEA 2000 LEN | Maximum System Power Load Network Draw: 15 mA (LEN: 1) |
| Waterproof Rating | IPX6 and IPX7 Extreme Environmental Deep Sea Submersion Graded Seals |
| Material & Bezel Finish | Aerodynamic Corrosion-Free Carbon Composite Structural Spar Base with Balanced Low-Mass Wind Cup Hardware |
| Number of Supportable Engines | Environmental Sailing Sensing Asset Only |
| Dry Weight | 1.35 kg / 2.97 lbs (Combined Mass of WS310 Sensor Pod, 20M Cable Spool, and N2K Interface Interface Module) |
| Application | Direct precision tactical weather and wind angle data tracking expansion for B&G Triton2, Vulcan, or Zeus multi-function glass networks on high-performance sailing yachts and ocean racers (20-60 ft boat lengths) |
