em-trak B923 Class B AIS Transceiver w/VHF Splitter – 2W CSTDMA
Eliminating dedicated second-antenna installations on coastal cruising sailboats, the em-trak B923 AIS transceiver integrates a zero-loss VHF splitter with a 2W CSTDMA engine, routing GPS/GLONASS data across NMEA 2000 at 0.93 lbs.
- Built-in antenna splitter shares existing VHF masts
- 2W CSTDMA transmission provides collision alerts
- Internal GPS/GLONASS engine tracks vessel coordinates
- FLEXI-MOUNT bracket simplifies bulkhead installation
$507.21
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
Add Class B AIS traffic awareness and vessel-position transmission to a compatible chartplotter with the SI-TEX MDA-1 Metadata AIS Transceiver. Its internal 50-channel GPS receiver, NMEA 2000/NMEA 0183/USB connections, and Wi-Fi support give boat owners flexible options for sharing AIS data with navigation displays and mobile devices. Need a compact AIS transceiver that can fit a protected interior installation? The MDA-1 operates from 12V or 24V DC and requires programming with valid vessel MMSI and static data before it can transmit.
Integration
The MDA-1 needs a dedicated AIS/VHF antenna or approved splitter, a compatible MFD, chartplotter, computer, or mobile app, and accurately entered MMSI/static vessel data. It is not a radar, VHF voice radio, chartplotter, EPIRB, or guaranteed collision-avoidance device.
AIS data relies on VHF reception and on other AIS-equipped vessels transmitting correct information. Receiving AIS targets does not mean every boat, buoy, floating object, or hazard will appear. Before transmitting in the U.S., obtain and program the correct MMSI and follow applicable radio rules. [926][928]
Before Ordering
Confirm MFD or chartplotter compatibility, MMSI availability, required AIS/VHF antenna or splitter, GPS antenna placement, desired NMEA/USB/Wi-Fi interface, 12V/24V power source, and protected mounting space before ordering.
Product Specifications
em-trak B923 Class B AIS Transceiver w/VHF Splitter - 2W CSTDMA
| Brand | em-trak |
|---|---|
| Full Model SKU / Code | 420-0004 |
| Device Type | 2W CSTDMA Class B AIS Transceiver with Built-In VHF Antenna Splitter |
| Frequency Range | 156.025 MHz - 162.025 MHz (Marine VHF AIS Bands) |
| Channels | Dual-Channel AIS Transceiver + Integrated Splitter |
| Output Power | 2 Watts CSTDMA |
| DSC (Digital Selective Calling) | N/A |
| GPS Receiver / GNSS | High-Performance Internal GPS / GLONASS Receiver |

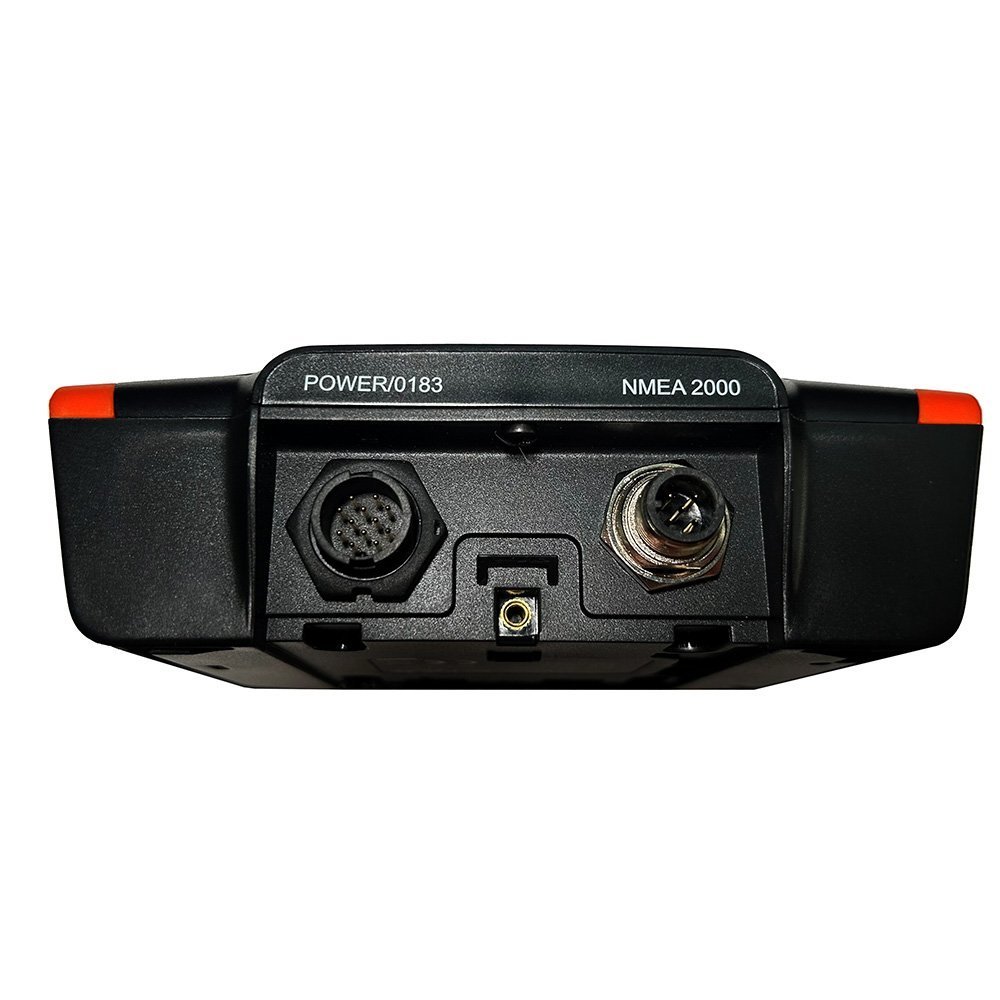

| NMEA Network Compatibility | NMEA 2000, Dual NMEA 0183 Ports, USB |
| Wireless Connectivity | None (Wired Connectivity) |
| Display Type & Size | Multi-Color Status Indicator LEDs |
| Waterproof Rating | IP67 Submersible Marine Enclosure |
| Operating Voltage Range | 9.6 to 31.2 V DC |
| Power Consumption | Average 1.7 W |
| Operating Temperature | -25°C to 55°C (-13°F to 131°F) |
| Dimensions (L x W x H) | 150 x 115 x 45 mm (5.9 x 4.5 x 1.8 in) |
| Dry Weight | 0.42 kg (0.93 lbs) |
| Mounting Options | Integrated FLEXI-MOUNT Bracket / Bulkhead Mount |
