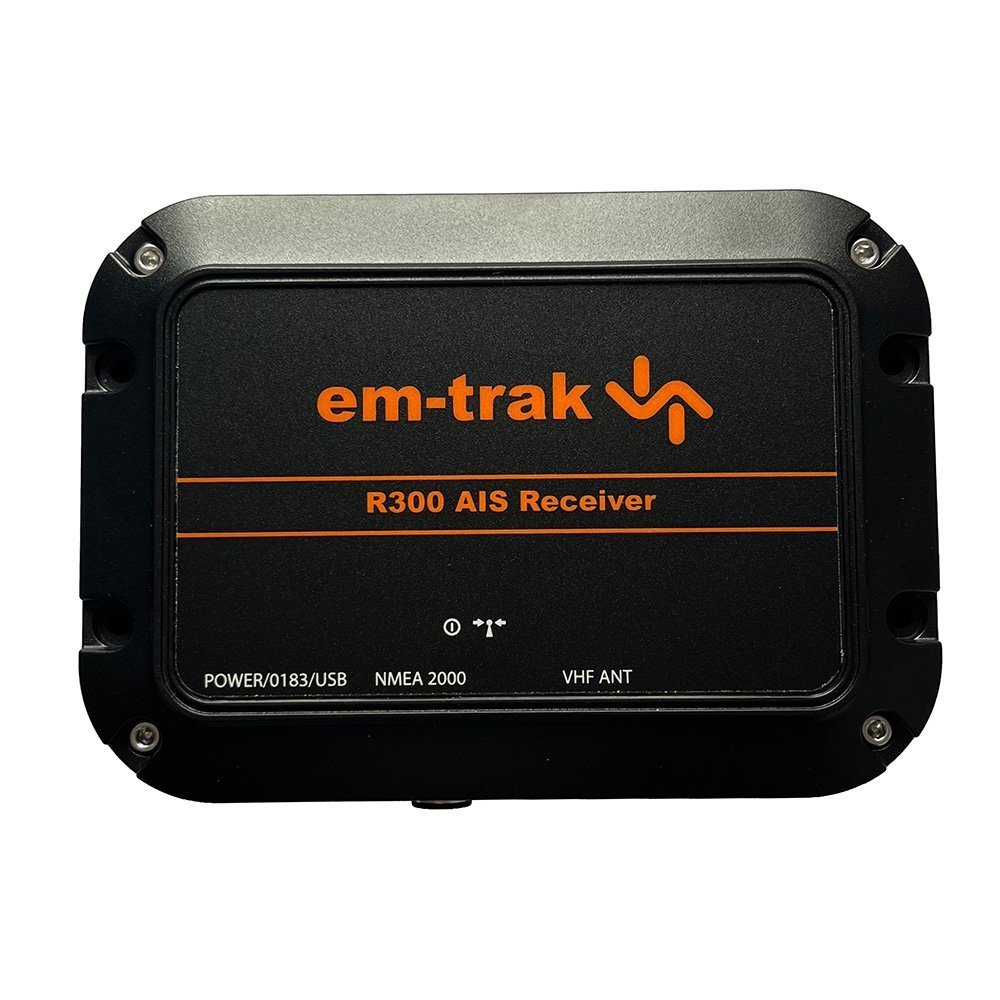

em-trak R300 AIS Receiver
Monitoring commercial vessel traffic across busy shipping channels, the em-trak R300 AIS receiver decodes dual-channel VHF data simultaneously, drawing 1.0W average across NMEA 2000 and dual NMEA 0183 ports inside an IP67 waterproof enclosure at 0.77 lbs.
- Dual-channel receiver tracks simultaneous AIS frequencies
- Low 1.0W draw preserves battery power
- IP67 submersible housing prevents water damage
- NMEA 2000 port connects chartplotter displays
$181.05
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
Add professional-grade AIS reception to a compatible marine network with the em-trak R300 AIS Receiver. Its dual-channel receiver monitors both AIS frequencies at the same time and delivers target data through NMEA 2000, dual NMEA 0183 ports, or USB for chartplotters, radar displays, and navigation computers. Need traffic awareness without transmitting your boat’s own position? The R300 is a receive-only AIS unit with low power draw, LED diagnostics, and an IP67 enclosure for protected marine installation.
Integration
The R300 needs a suitable AIS/VHF antenna or approved antenna splitter plus a compatible MFD, chartplotter, radar display, or navigation computer. It is not an AIS transceiver, VHF voice radio, GPS receiver, chartplotter, radar, or emergency beacon. Because it only receives AIS, it does not make the vessel visible to other AIS-equipped traffic.
AIS reception depends on antenna height, antenna condition, local VHF interference, terrain, distance, and other vessels transmitting accurate data. AIS does not identify every vessel, buoy, floating object, or navigation hazard and should be used alongside radar, charts, visual lookout, and safe operating practices.
Before Ordering
Confirm AIS antenna or splitter requirements, compatible NMEA 2000/NMEA 0183/USB input, display or software support, available 12V/24V power, protected mounting space, and whether receive-only AIS meets the vessel’s needs before ordering.
Product Specifications
em-trak R300 AIS Receiver
| Brand | em-trak |
|---|---|
| Full Model SKU / Code | 410-0030 |
| Device Type | Professional-Grade Dual-Channel AIS Receiver |
| Frequency Range | 156.025 MHz - 162.025 MHz (Marine VHF AIS Bands) |
| Channels | Dual-Channel Simultaneous AIS Receiver |
| Output Power | N/A (Receiver Only - No Transmission) |
| DSC (Digital Selective Calling) | N/A |
| GPS Receiver / GNSS | N/A |
| NMEA Network Compatibility | NMEA 2000, Dual NMEA 0183 Ports, USB |
| Wireless Connectivity | None |
| Display Type & Size | Diagnostic LED Indicator Panel |
| Waterproof Rating | IP67 Submersible Marine Enclosure |
| Operating Voltage Range | 9.6 to 31.2 V DC |
| Power Consumption | Average 1.0 W |
| Operating Temperature | -25°C to 55°C (-13°F to 131°F) |
| Dimensions (L x W x H) | 140 x 100 x 42 mm (5.5 x 3.9 x 1.7 in) |
| Dry Weight | 0.35 kg (0.77 lbs) |
| Mounting Options | Bulkhead / Surface Mount |
