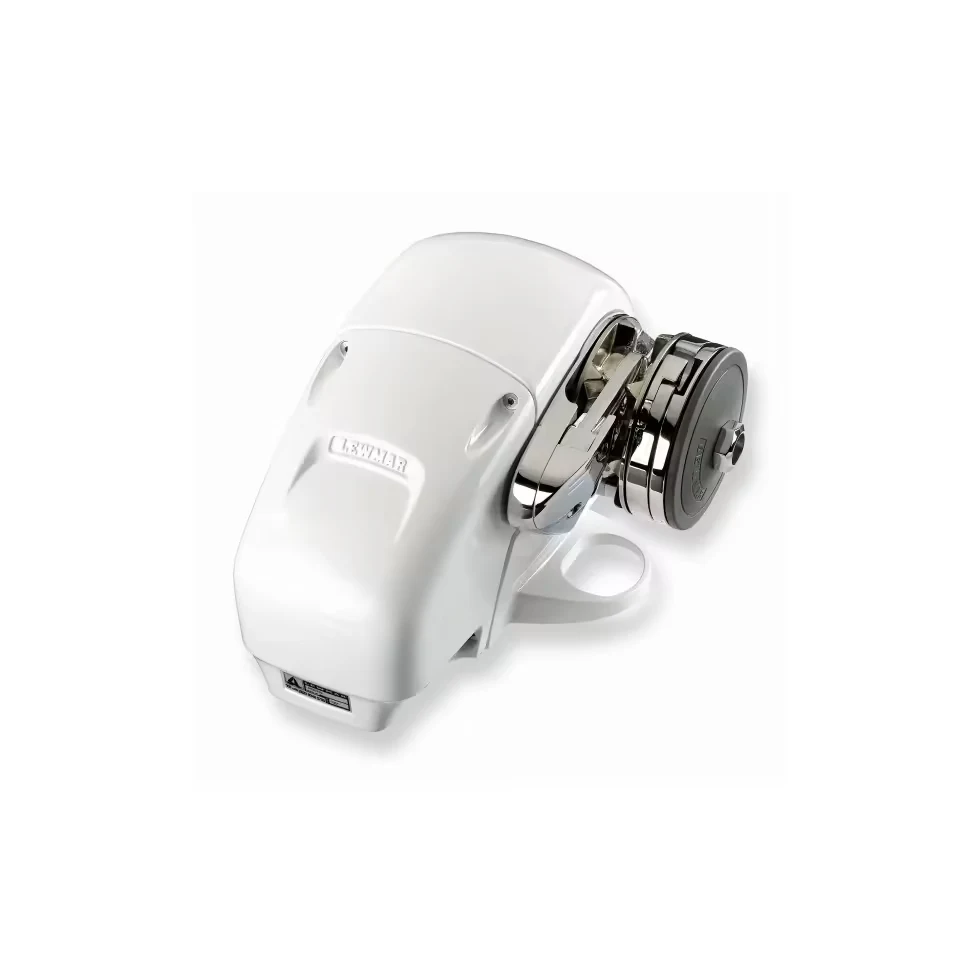

Lewmar H3G Windlass (Gypsy) 12v RC8MM – For Boats Up to 55 Ft., Max Pull: 1962 lbs.

A compact gypsy-only arrangement defines theLewmar H3Ghorizontal windlass. Its 1,000W 12V DC motor has a stated maximum pull of 1,962 lbs and a 492 lbs continuous working-load rating. The cast 316 stainless steel casing and internal shaft support the drive assembly for 8 mm DIN 766 or ISO 4565 chain with 14 to 16 mm three-strand rope.

The free-fall mechanism provides the listed rode-release function, while the emergency manual override provides a separate control feature. The windlass mounts through deck material from 1.0 to 2.0 in thick. The provided product data does not confirm an anchor, rode, switch, contactor, or circuit breaker as included.

Which Boats This Windlass Fits

The H3G horizontal windlass is recommended for offshore cruisers and yachts up to 55 ft. Its gypsy requires 8 mm DIN 766 or ISO 4565 chain paired with 14 to 16 mm three-strand rope. The rope and named chain standards must match the confirmed gypsy configuration before choosing anchor rode components.

the listed maximum pull is 1,962 lbs. The 492 lbs working-load rating represents the separate continuous hauling load. Buyers should use the continuous rating to evaluate regular retrieval requirements.

Care and Operating Notes

Rinse the casing, gypsy, chain, and rope with fresh water after saltwater exposure. Remove salt, sand, mud, and debris from the rope-to-chain transition and free-fall mechanism before operation. Inspect chain links, rope condition, manual override access, visible fasteners, and electrical connections before departure. Follow the manufacturer manual for lubricant selection, service intervals, disassembly, and approved replacement parts.

Warranty and Support

The H3G carries a 3-year limited manufacturer warranty. The provided warranty term does not define coverage for labor, corrosion, electrical accessories, shipping, or other components. These terms reflect manufacturer-stated coverage, and buyers should verify active warranty policies directly with the seller or manufacturer prior to purchase.

Before Ordering

Confirm that your anchor rode combines 8 mm DIN 766 or ISO 4565 chain with 14 to 16 mm three-strand rope. You should compare your boat with the up-to-55-ft application guide, measure deck thickness against the 1.0 to 2.0 in range, and reserve space for the 218 mm by 245 mm housing. Verify that your 12V system supports the listed 110A average draw and required 100A circuit breaker. Confirm controls, circuit-protection hardware, anchor, chain, and rope with the seller because the provided product data does not confirm them as included.
