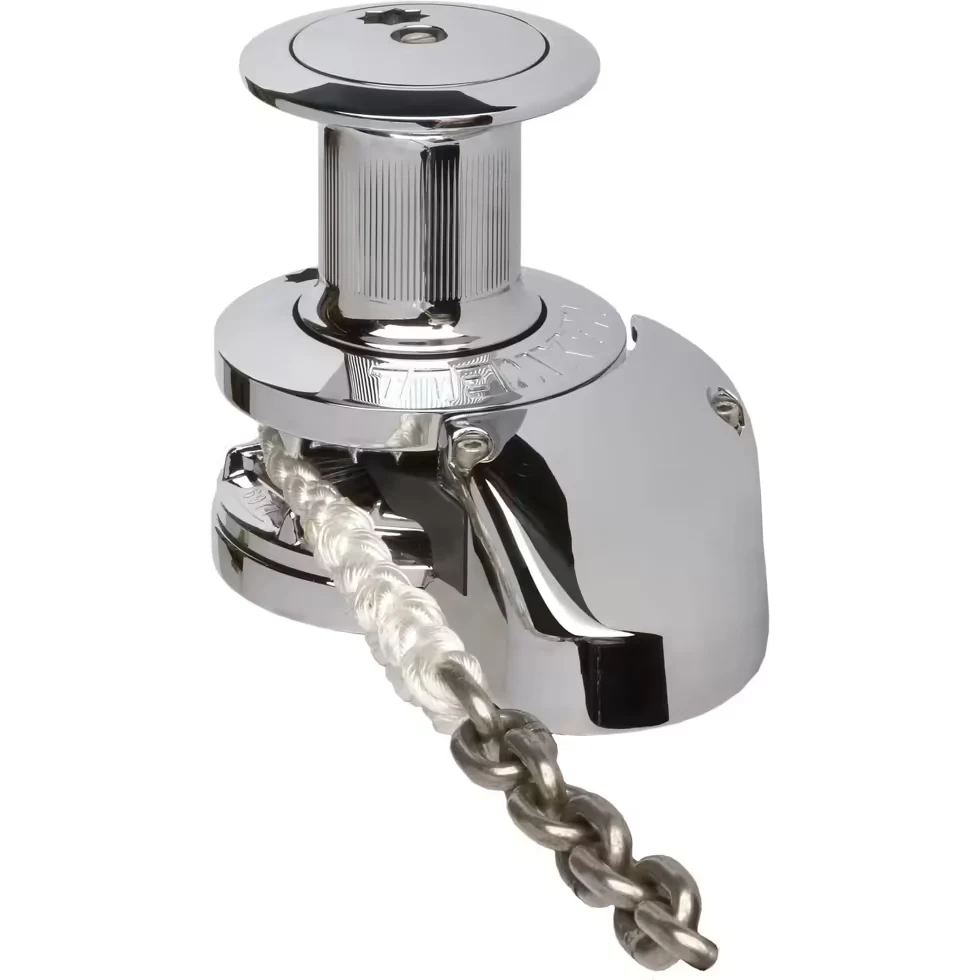

Maxwell RC10-10 Vertical 12v Windlass with Capstan for 3/8″ Chain & 5/8″ Line

A 1,200W motor, vertical gypsy, and independent capstan define theMaxwell RC10-10deck configuration. The 12V windlass has a stated maximum pull of 1,870 lbs and a 550 lbs continuous working-load rating. Its mirror-polished chrome-plated bronze casing and drum form the listed deck assembly.

The gypsy accepts 3/8 in short-link chain with 5/8 in three-strand or 8-plait rope. The patented Wave Design gypsy includes an integrated manual override. The independent warping capstan provides separate line handling beside the compatible anchor rode.

Which Boats This Windlass Fits

The RC10-10 gypsy and capstan windlass is recommended for power cruisers, yachts, and sailboats from 30 to 45 ft. Its gypsy requires 3/8 in short-link chain with 5/8 in three-strand or 8-plait rope. Buyers should match the chain links and rope construction to the listed configuration before selecting anchor rode.

the listed maximum pull is 1,870 lbs. The 550 lbs working-load rating provides the separate continuous hauling value. Boat owners should use the continuous figure when assessing normal anchor retrieval requirements.

Care and Operating Notes

Rinse the casing, gypsy, capstan drum, chain, rope, and accessible deck hardware with fresh water after saltwater exposure. Remove salt, sand, mud, and debris from the rope-to-chain transition and Wave Design gypsy before operation. Inspect chain links, rope condition, manual-override access, drum surface, visible fasteners, and electrical connections before departure. Follow the manufacturer manual for gypsy service, lubricant selection, disassembly, and approved replacement parts.

Warranty and Support

The RC10-10 carries a 3-year limited manufacturer warranty. Coverage follows the manufacturer’s stated warranty terms and may be subject to exclusions, conditions, and registration requirements.

Before Ordering

Confirm that your anchor rode uses 3/8 in short-link chain with 5/8 in three-strand or 8-plait rope. You should compare your vessel with the 30 to 45 ft application guide, reserve space for the 230 mm above-deck height and 170 mm base diameter, and confirm the 12V system can use the required 135A breaker. Consult manufacturer installation documentation for deck thickness, mounting dimensions, and capstan clearance.
