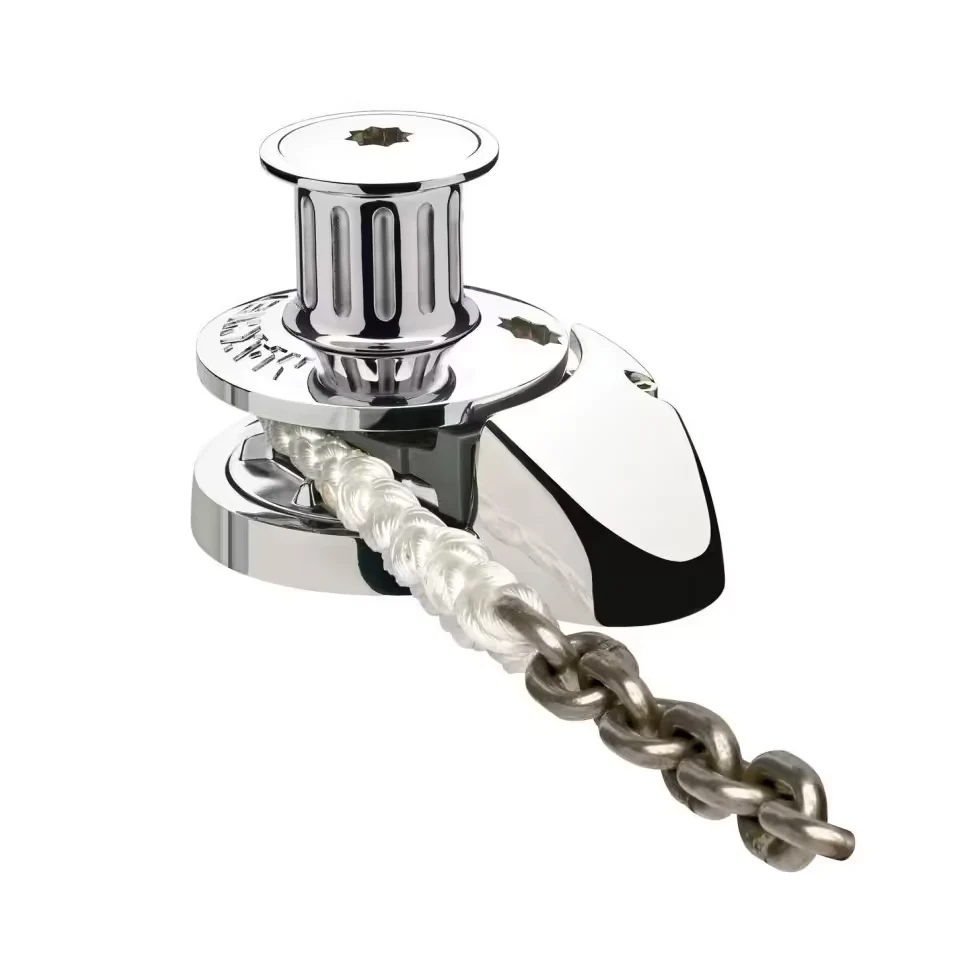

Maxwell RC8-8 Vertical 12v Windlass with Capstan for 5/16″ Chain & 5/8″ Line

A 1,000W 12V motor, vertical gypsy, and warping capstan drum define theMaxwell RC8-8configuration. The windlass has a stated maximum pull of 1,320 lbs and a 440 lbs continuous working-load rating. Its heavy chrome-plated bronze body and stainless steel internal shaft form the listed deck and capstan assembly.

The gypsy accepts 5/16 in short-link chain with 9/16 to 5/8 in three-strand or 8-plait rope. A patented Wave Design free-fall clutch provides the listed release function, while an emergency manual release offers the listed manual-control feature.

Which Boats This Windlass Fits

The RC8-8 gypsy and capstan windlass is recommended for powerboats and sailboats from 28 to 44 ft. Its gypsy requires 5/16 in short-link chain with 9/16 to 5/8 in three-strand or 8-plait rope. Buyers should confirm chain link style, chain size, rope diameter, and rope construction before ordering.

the listed maximum pull is 1,320 lbs. The 440 lbs working-load rating provides the separate continuous hauling value. Boat owners should use the continuous figure when evaluating normal anchor retrieval requirements.

Care and Operating Notes

Rinse the housing, gypsy, capstan drum, chain, rope, and visible shaft surfaces with fresh water after saltwater exposure. Remove salt, sand, mud, and debris from the rope-to-chain transition and Wave Design clutch before operation. Inspect chain links, rope condition, clutch movement, manual-release access, capstan surface, visible fasteners, and electrical connections before departure. Follow the manufacturer manual for clutch service, lubricant selection, disassembly, and approved replacement parts.

Warranty and Support

The RC8-8 carries a 3-year limited manufacturer warranty. Coverage follows the manufacturer’s stated warranty terms and may be subject to exclusions, conditions, and registration requirements.

Before Ordering

Confirm that your anchor rode uses 5/16 in short-link chain with 9/16 to 5/8 in three-strand or 8-plait rope. You should compare your vessel with the 28 to 44 ft application guide, reserve space for the 210 mm above-deck height and 156 mm base diameter, and verify the 12V circuit can use the required 100A breaker. Consult manufacturer installation documentation for deck thickness and mounting details.
