Powerwinch 36′ Class Windlass

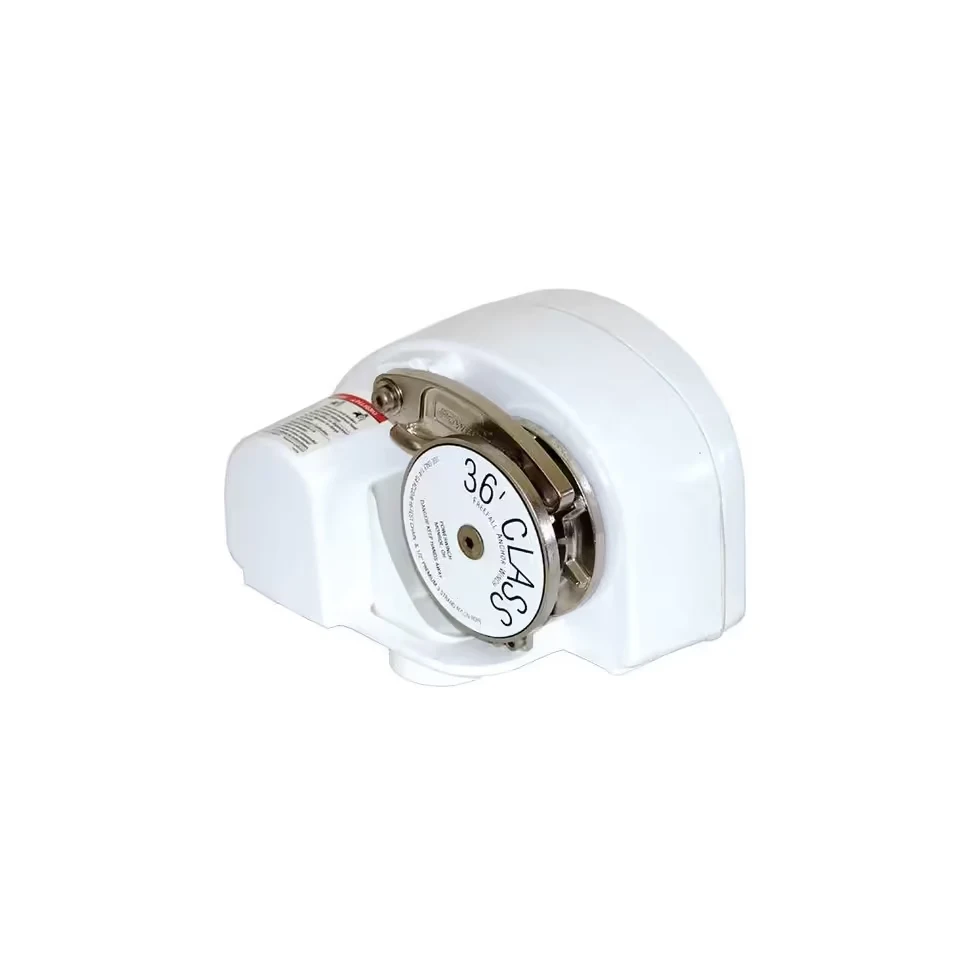

ThePowerwinch 36 Classis an 800W 12V DC horizontal above-deck windlass with a free-fall capable release system and power-down control. The windlass has a stated maximum pull of 800 lbs and a 200 lbs continuous working-load rating. Its T6 marine aluminum alloy housing includes stainless steel accents.

The gypsy accepts 1/4 in G4 or BBB chain with 1/2 in three-strand rope. The product data identifies a 50A circuit-breaker requirement and a 32 lbs dry weight. It does not confirm an anchor, rode, controls, contactor, or circuit breaker as included.

Which Boats This Windlass Fits

The 36 Class horizontal windlass is recommended for powerboats and cruisers up to 36 ft. Its gypsy requires 1/4 in G4 or BBB chain with 1/2 in three-strand rope. Both the chain grade and rope diameter should match the listed compatibility details before selecting anchor rode components.

The 800 lbs maximum pull is the listed peak rating. The 200 lbs working-load rating provides the separate continuous hauling value. Buyers should use the continuous figure when reviewing regular anchor retrieval requirements.

Care and Operating Notes

Rinse the housing, gypsy, chain, and rope with fresh water after saltwater exposure. Clear salt, sand, mud, and debris from the chain links, rope-to-chain transition, and release-system area before operation. Inspect the chain, rope, release function, visible fasteners, and electrical connections before departure. Follow the manufacturer manual for lubricant selection, service intervals, disassembly, and approved replacement parts.

Warranty and Support

The 36 Class carries a 2-year limited manufacturer warranty. The provided warranty term does not define coverage for labor, corrosion, electrical accessories, shipping, or other components. These terms reflect manufacturer-stated coverage, and buyers should verify active warranty policies directly with the seller or manufacturer prior to purchase.

Before Ordering

Confirm that your anchor rode uses 1/4 in G4 or BBB chain with 1/2 in three-strand rope. You should compare your boat with the up-to-36-ft application guide and verify that your 12V system can use the required 50A circuit breaker. Consult manufacturer installation documentation for deck thickness, dimensions, clearance, cable routing, and controls because the listed data does not provide those details. Confirm package contents with the seller before ordering.
