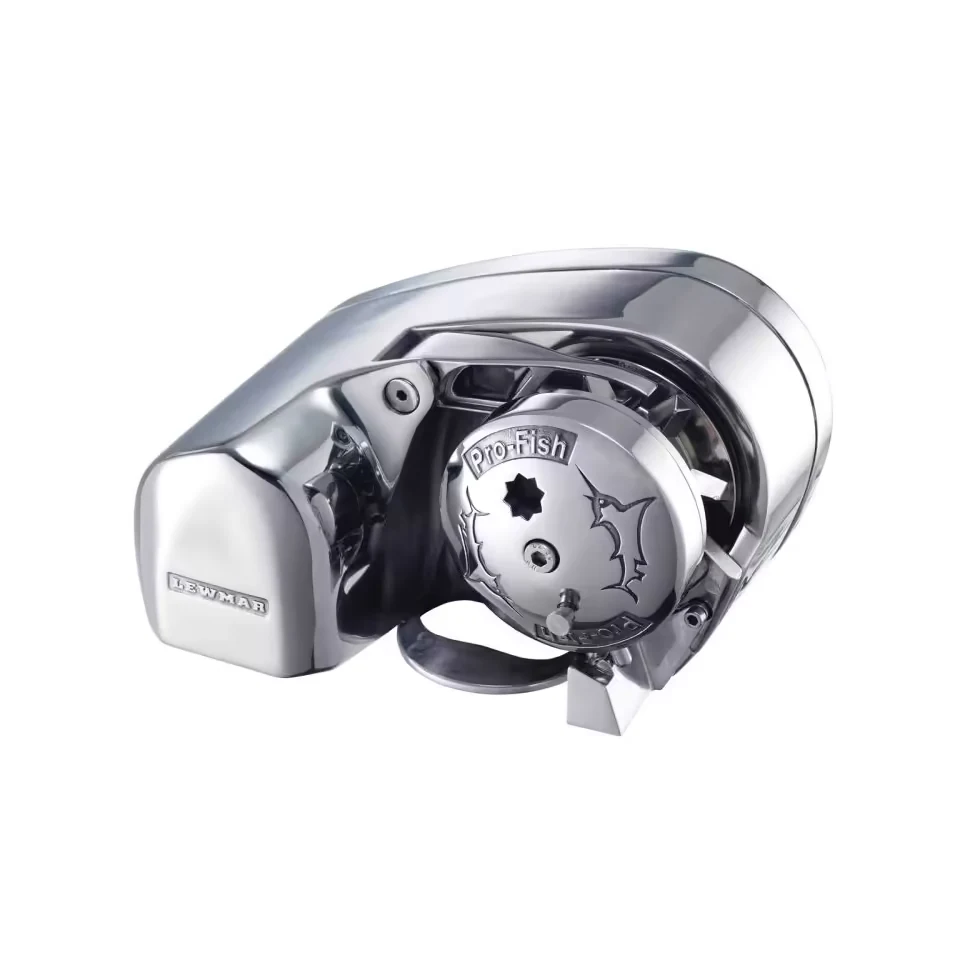

Lewmar Profish 700 Free Fall Windlass with Rocker & Contactor

TheLewmar Pro-Fish 700uses a 500W 12V DC motor in a horizontal above-deck windlass with automatic drop free-fall. The product has a stated maximum pull of 700 lbs and a 175 lbs continuous working-load rating. Its cast 316 stainless steel body and drive shaft work with a gypsy for 1/4 in G4 chain and 1/2 in three-strand rope.

The manual override provides the listed secondary control feature alongside the automatic free-fall mechanism. The unit mounts through deck material from 0.8 to 1.5 in thick and measures 146 mm high by 178 mm wide. The provided product data does not confirm an anchor, rode, rocker switch, contactor, or circuit breaker as included.

Which Boats This Windlass Fits

The Pro-Fish 700 horizontal windlass is recommended for fishing and cruising boats from 20 to 35 ft. Its gypsy works with 1/4 in G4 chain paired with 1/2 in three-strand rope. The connected rode should use both stated dimensions so the gypsy can manage the chain links and rope section during anchor handling.

The 700 lbs figure represents the listed maximum pull rating. The 175 lbs figure describes the separate continuous working load. These values serve different purposes, and the continuous rating applies to regular hauling assessment.

Care and Operating Notes

Rinse the housing, gypsy, chain, and rope with fresh water after saltwater exposure. Remove salt, sand, mud, and debris from the gypsy and rope-to-chain transition before using the free-fall system. Inspect chain links, rope condition, manual override access, visible fasteners, and electrical connections before departure. Follow the manufacturer manual for lubricant selection, service intervals, disassembly, and approved replacement parts.

Warranty and Support

The Pro-Fish 700 carries a 5-year limited manufacturer warranty. The provided warranty term does not define coverage for labor, corrosion, electrical accessories, shipping, or other components. These terms reflect manufacturer-stated coverage, and buyers should verify active warranty policies directly with the seller or manufacturer prior to purchase.

Before Ordering

Confirm that your anchor rode uses 1/4 in G4 chain with 1/2 in three-strand rope. You should compare your boat with the 20 to 35 ft application guide, measure deck thickness against the 0.8 to 1.5 in range, and reserve room for the 146 mm by 178 mm housing. Verify that your 12V electrical system supports the 35A average draw and required 50A circuit breaker. Confirm the package contents with the seller if you require an anchor, rope, chain, rocker switch, contactor, or circuit-protection hardware.
