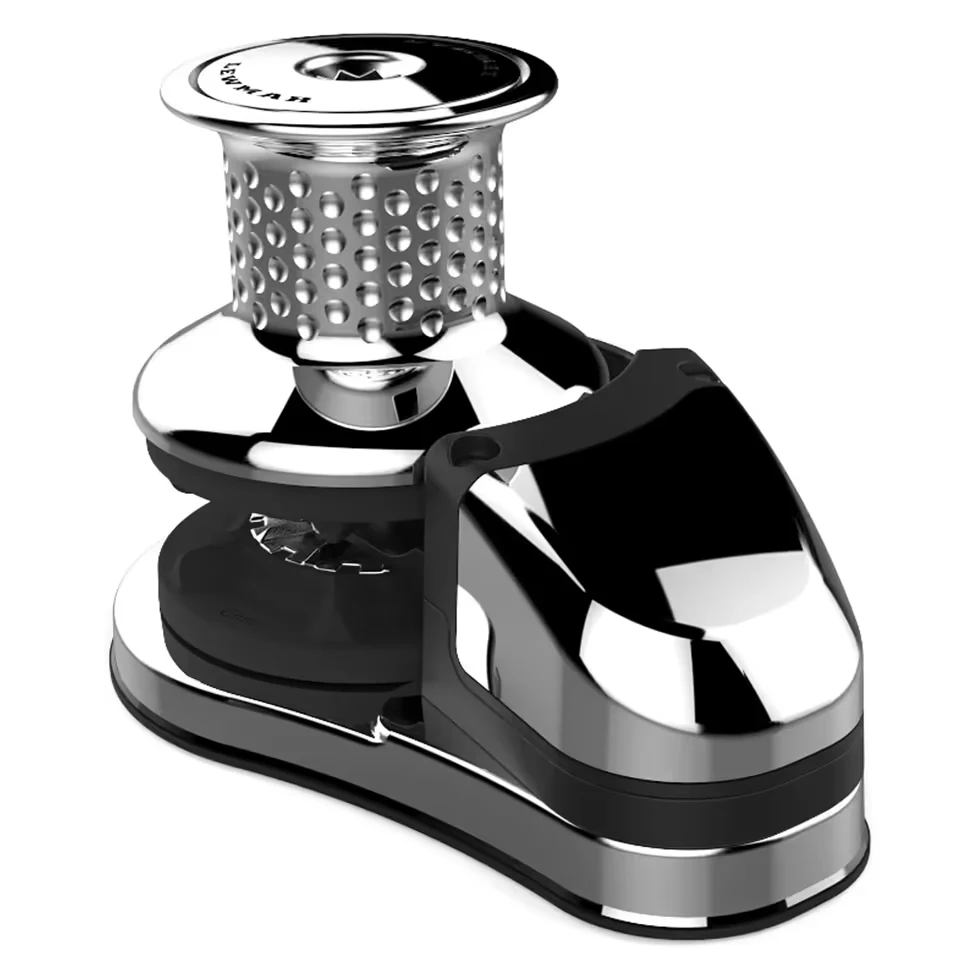

Lewmar VX1 GD Vertical Windlass with 6/7 MM Gypsy & Drum, 500 Watt

For smaller cruisers and sailboats, theLewmar VX1pairs a vertical gypsy with a warping drum and a 500W 12V DC motor. The windlass has a stated maximum pull of 882 lbs and a 220 lbs continuous working-load rating. Its stainless steel top cap and lightweight composite sub-deck structure support the listed configuration for 6 to 7 mm DIN 766 or ISO 4565 chain.

The gypsy accepts 12 mm three-strand or 8-plait rope with the confirmed 6 to 7 mm chain standards. A manual friction cone clutch provides the listed free-fall release function. The provided product data does not confirm an anchor, rode, switch, contactor, or circuit breaker as included.

Which Boats This Windlass Fits

The VX1 vertical windlass is recommended for small cruisers and sailboats from 20 to 30 ft. Its gypsy requires 6 to 7 mm DIN 766 or ISO 4565 chain with 12 mm three-strand or 8-plait rope. The chain standard, chain diameter, and rope diameter must match the confirmed gypsy configuration for anchor rode handling.

the listed maximum pull rating is 882 lbs. The 220 lbs working-load rating provides the separate continuous hauling figure. Boat owners should consider the working-load value when assessing normal retrieval needs.

Care and Operating Notes

Rinse the stainless steel top cap, gypsy, warping drum, chain, and rope with fresh water after saltwater exposure. Remove salt, sand, mud, and debris from the chain links, rope transition, and manual clutch area before operating the windlass. Inspect chain links, rope condition, clutch movement, visible fasteners, and electrical connections before departure. Follow the manufacturer manual for lubricant selection, service intervals, disassembly, and approved replacement parts.

Warranty and Support

The VX1 carries a 3-year limited manufacturer warranty. The provided warranty term does not define coverage for labor, corrosion, electrical accessories, shipping, or other components. These terms reflect manufacturer-stated coverage, and buyers should verify active warranty policies directly with the seller or manufacturer prior to purchase.

Before Ordering

Confirm that your anchor rode uses 6 to 7 mm DIN 766 or ISO 4565 chain with 12 mm three-strand or 8-plait rope. You should compare your boat with the 20 to 30 ft application guide, measure deck thickness against the 0.8 to 1.6 in range, and reserve space for the 185 mm-high unit and below-deck motor assembly. Verify that your 12V system supports the listed 35A average draw and required 50A circuit breaker. Confirm controls, circuit protection hardware, anchor, chain, and rope with the seller because the provided product data does not confirm them as included.
