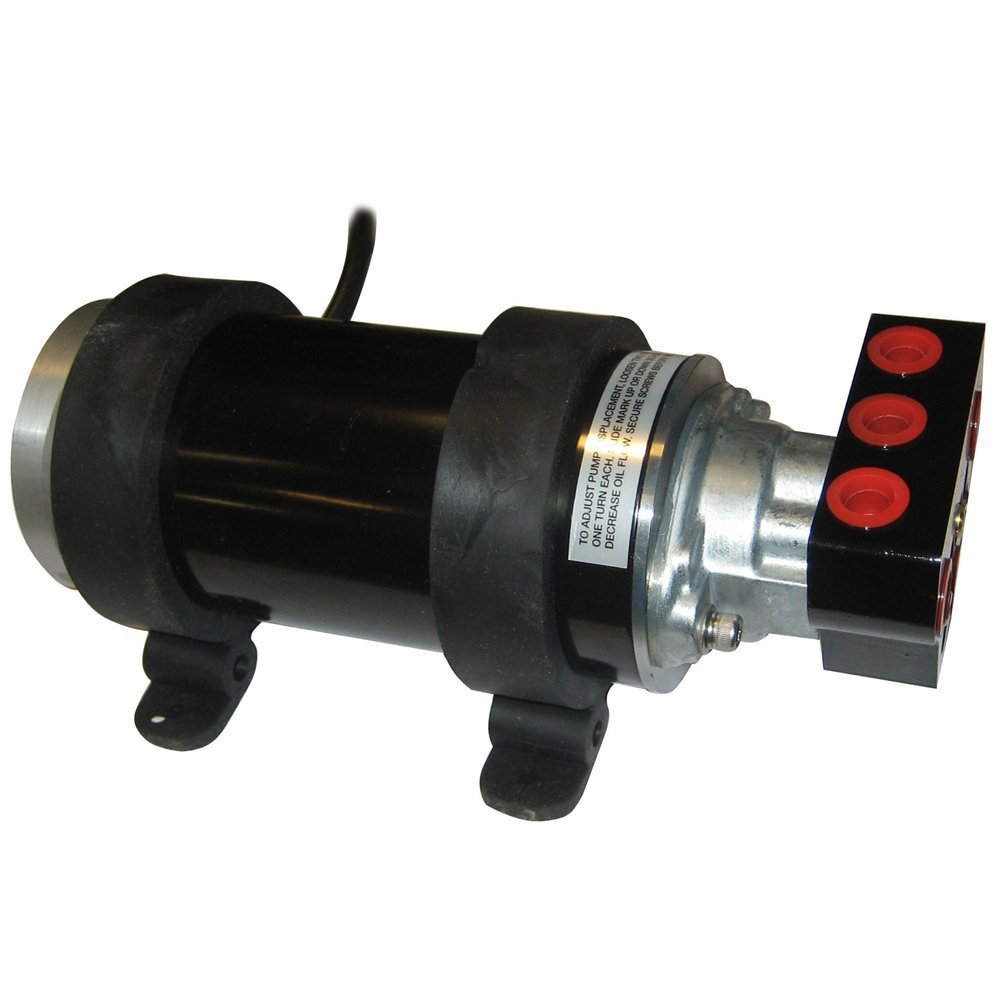

SI-TEX 18CI Pumpset 12V

Name: SI-TEX 18CI Pumpset 12V
Brand: SI-TEX
SKU: STX-PUMP-18CI
Price: 311.52 USD
Availability: InStock

$311.52

Availability In stock and available to order

Buy Now

Bulk order support Request for Quotation

Compare Ask a question

Category: Marine Pumps Brand: SI-TEX SKU: STX-PUMP-18CI

Free standard shipping to eligible destinationsSecure checkout

Product Specifications

Drive Type	Reversible Hydraulic Gear Pump
Pump/Ram Capacity	18 Cubic Inch (18ci) System Capacity
Flow Rate / Speed	1.2L per Minute Flow Rate
Max Pressure	55 Bar (800 PSI) Standard
Cylinder Compatibility	Medium to Large Hydraulic Rams
Operating Voltage	12V DC System
Peak Current Draw	19 Amps Maximum Load
Average Power Draw	5A - 10A Typical Cruising
Motor Type	Heavy-Duty Reversing DC Motor
Computer Compatibility	SP-70, SP-80, SP-110, NAC-2/3
Port Size / Thread	1/4" NPT Standard Fittings
Drive Connection	Hydraulic High-Pressure Lines
Rotation/Stroke Direction	Dual-Direction Precision Flow
Mounting Type	Vertical or Horizontal Foot Mount
Housing Material	Anodized Aluminum & Steel Alloy
Waterproof Rating	IP55 Marine Protected
Operating Temperature	-15°C to +55°C Marine Grade
Length (Overall)	205 mm Chassis Profile
Width/Diameter	95 mm Body Diameter
Weight	3.5 kg (7.7 lbs)
Included Accessories	Mounting Hardware, Sealing Kit
Key Mechanical Feature	Precision gear pump for smooth steering
