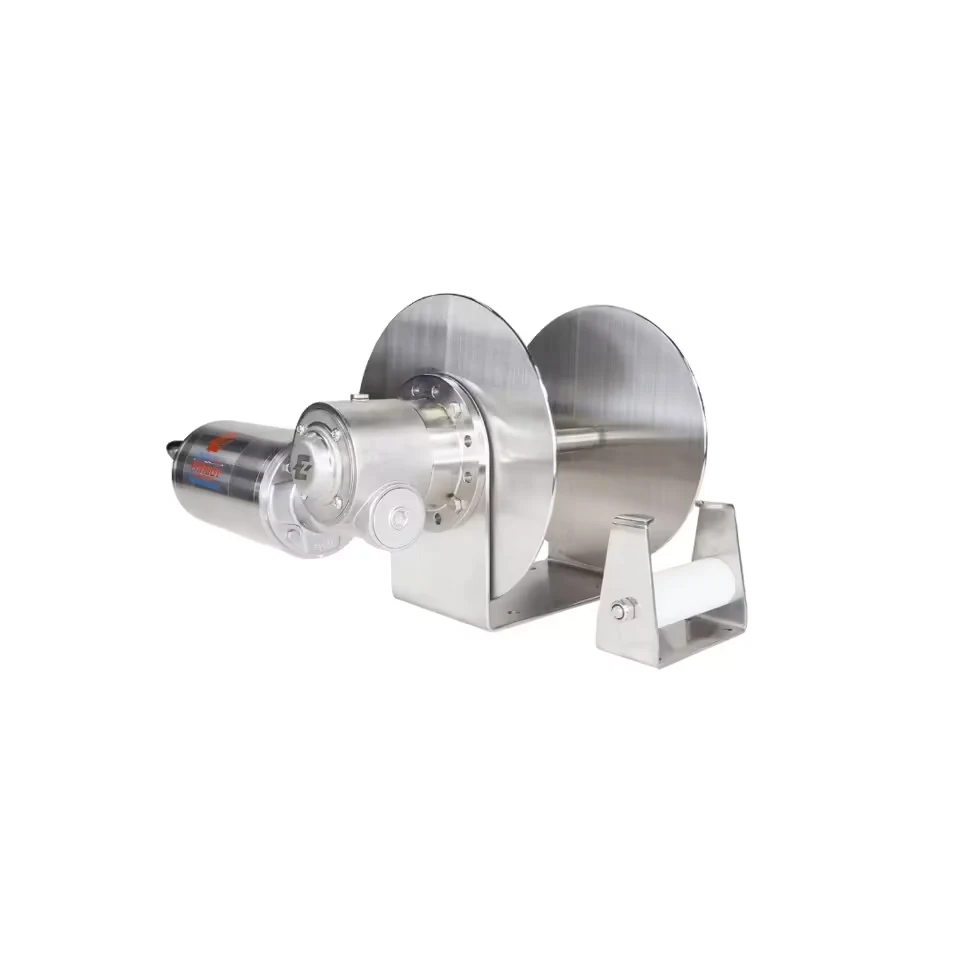

Anchor Winch Captain EZ-3134-0129 – Stainless Steel Direct Drive Drum Anchor Winch For Boats To 30

TheCaptain EZ-3is a horizontal direct-drive captive drum winch with a 900W 12V DC motor. The winch has a stated maximum pull of 1,102 lbs and a 275 lbs continuous working-load rating. Its marine-grade 316 stainless steel casing and drive shaft form the listed drum and drive assembly.

The captive drum holds up to 70 m of 8 mm rope or 55 m of 10 mm rope with a chain leader. A mechanical manual free-spool release forms part of the direct-drive system. The provided product data does not confirm an anchor, rope, chain leader, controls, contactor, or circuit breaker as included.

Which Boats This Drum Winch Fits

The EZ-3 drum anchor winch is recommended for coastal cruisers and fishing boats up to 30 ft. Its captive drum holds either 70 m of 8 mm rope or 55 m of 10 mm rope with a chain leader. Buyers should verify rope diameter, line length, chain-leader arrangement, and drum capacity before ordering.

the listed maximum pull is 1,102 lbs. The 275 lbs working-load rating provides the separate continuous hauling value. The continuous rating should guide routine retrieval assessment.

Care and Operating Notes

Rinse the casing, drum, rope, chain leader, and exposed hardware with fresh water after saltwater exposure. Clear salt, sand, mud, and debris from the drum and manual free-spool mechanism before operation. Inspect rope condition, chain leader, release movement, visible fasteners, and electrical connections before departure. Follow the manufacturer manual for service procedures, lubricant selection, disassembly, and approved replacement parts.

Warranty and Support

The EZ-3 carries a 3-year limited warranty on the motor and gearbox. The provided warranty term does not define coverage for labor, corrosion, drum, rope, chain leader, shipping, or installation components. These terms reflect manufacturer-stated coverage, and buyers should verify active warranty policies directly with the seller or manufacturer prior to purchase.

Before Ordering

Confirm whether your anchor rode uses up to 70 m of 8 mm rope or up to 55 m of 10 mm rope with a chain leader. You should compare your boat with the up-to-30-ft application guide, reserve space for the 255 mm by 340 mm housing, and account for the 40 lbs dry weight. Verify that your 12V system can use the required 80A circuit breaker. Confirm controls, contactor, circuit protection, anchor, rope, chain leader, and mounting hardware with the seller because the provided product data does not confirm them as included.
